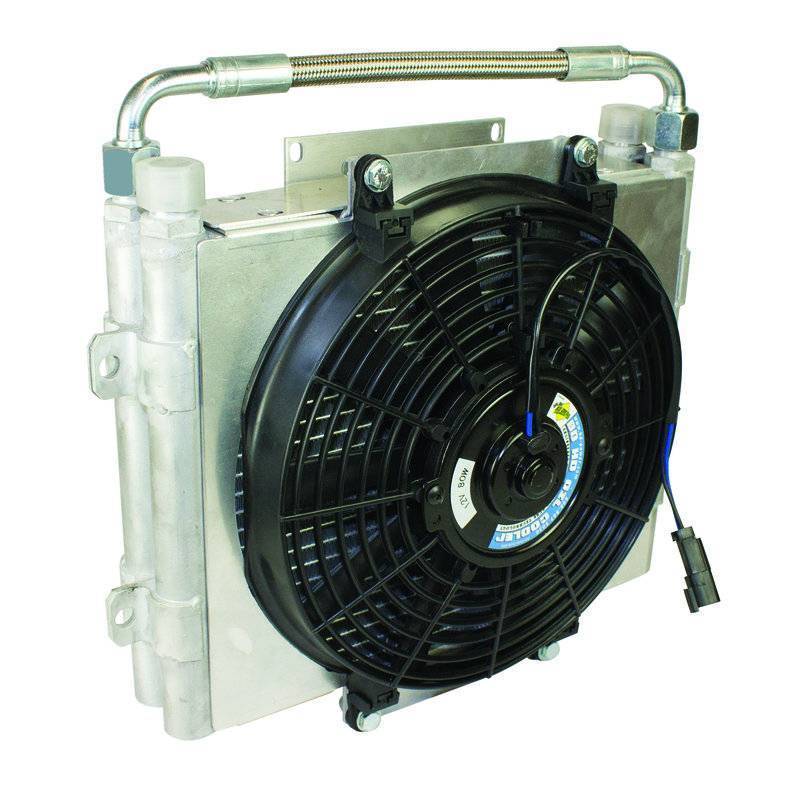

BD Diesel Xtrude Trans Cooler Double Stacked (No Install Kit)

HOT transmission oil has to be Cooled to keep you on the track. Double stacked cores deliver over 40,000 BTU/HR of cooling and over 350 percent temperature drop versus the factory system - 36 percent better temperature drop than BD's standard single core kit.

Product information

The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure.

The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

Specifications

• Manufacturer part number: 1300601-DS
• Series: Xtrude
• Application years: Universal
• Sold as: Kit
• Country of origin: CA

Application and ordering notes

• Xtrude Trans Cooler Double Stacked (No Install Kit)
• Select the correct component for your transmission model and service requirements, with the important specifications and installation notes collected below.
• Universal or component-specific application: verify dimensions, connections and required components. This does not mean direct fitment to every vehicle.

Warranty

Supplier-listed warranty: 12-Months/24,000 Miles. Review the applicable coverage, exclusions and claim requirements.

Shipping and emissions information

Supplier statement: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Verify applicability to your exact vehicle and configuration before purchase.

Proposition 65 warning

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
