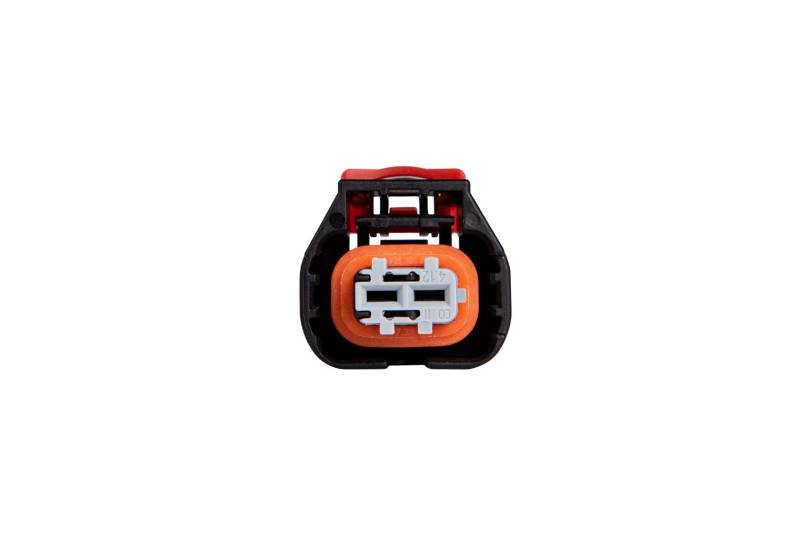

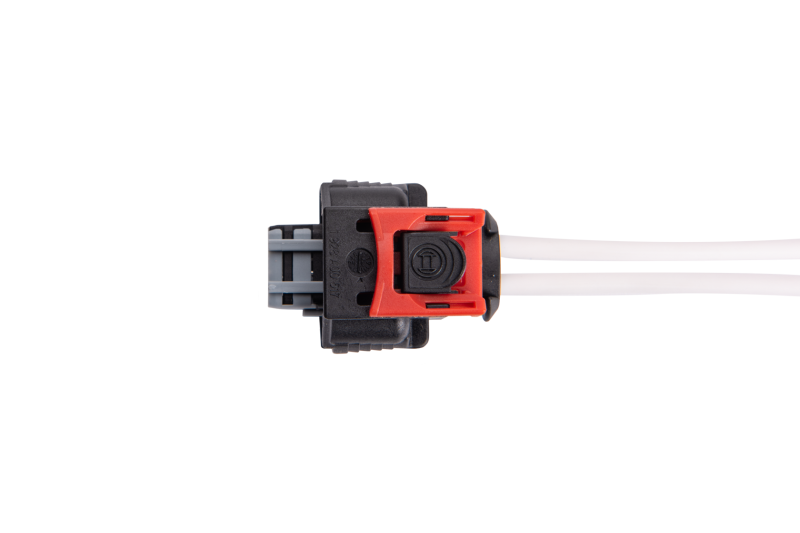

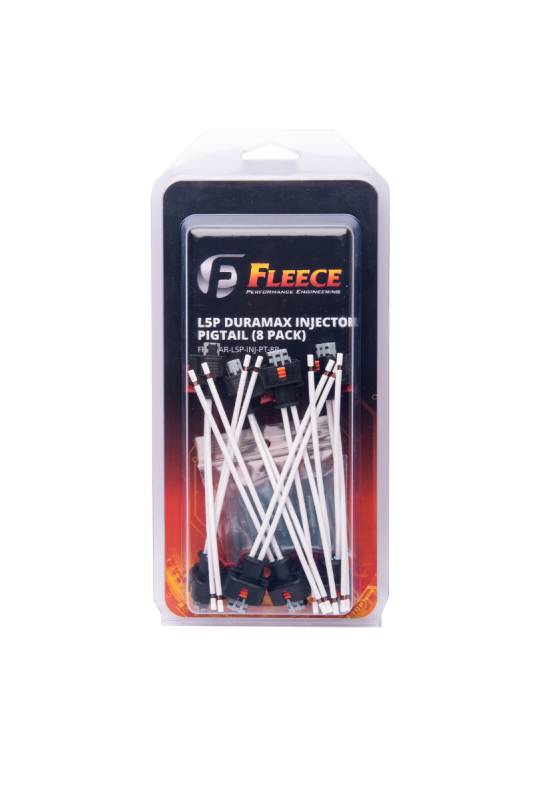

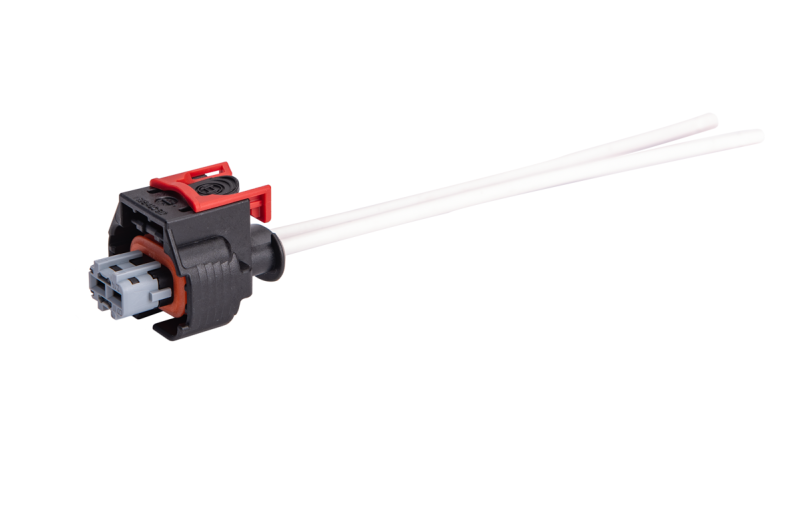

Replacement Fuel Injector Connector With Pigtail for L5P Duramax - 8 Pack

A common failure point on the L5P Duramax, our replacement connector with 4.5" pigtail for the fuel injectors will get you back on the road quickly.  This connector is typically replaced during an injector replacement and is prone to increased resistance over time that can result in an injector DTC (P0201-P0208). Includes heat-sealable butt-style connectors. Produced in-house, our manufacturing process includes fully automated wire cutting and terminal crimping to ensure you get the highest quality replacement parts you need to get your truck back on the road quickly. A total quantity of 8 pigtails are included in this kit - buy more and save!

Replaces GM: 19368140

Diagnostic Tips

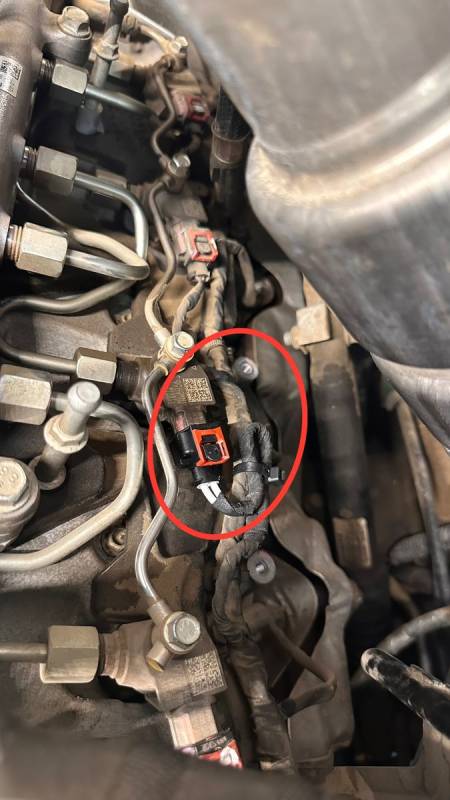

Be sure to check pin fit on all injector connectors. LML and especially L5P are common for setting random misfire or injector circuit faults from poor connections at the injector. Many times shops will blame the injector and replace both the injector and connector when it's just a connector issue. Make sure to use good quality heat shrink butt connections or solder connections with heat shrink to prevent water intrusion. Tape securely to prevent movement and abnormal wear. We have included an image of a repair done at Orangevale Diesel for reference.

Common DTC Codes

P0201 - Cylinder 1 Injector Circuit Fault

P0202 - Cylinder 2 Injector Circuit Fault

P0203 - Cylinder 3 Injector Circuit Fault

P0204 - Cylinder 4 Injector Circuit Fault

P0205 - Cylinder 5 Injector Circuit Fault

P0206 - Cylinder 6 Injector Circuit Fault

P0207 - Cylinder 7 Injector Circuit Fault

P0208 - Cylinder 8 Injector Circuit Fault

P0300 - Engine Random Misfire Present

Application Notes

Fits 2017-2024 L5P 6.6L Duramax Fuel Injectors

Fits 2011-2016 LML 6.6L Duramax Fuel Injectors

Fits 2019-2025 LM2 and LZ0 3.0L Duramax Fuel Injectors
