BD Diesel Towmaster Ford 6R140 Transmission & Converter Package 6.7L Power Stroke 2011-2016 2WD/4WD

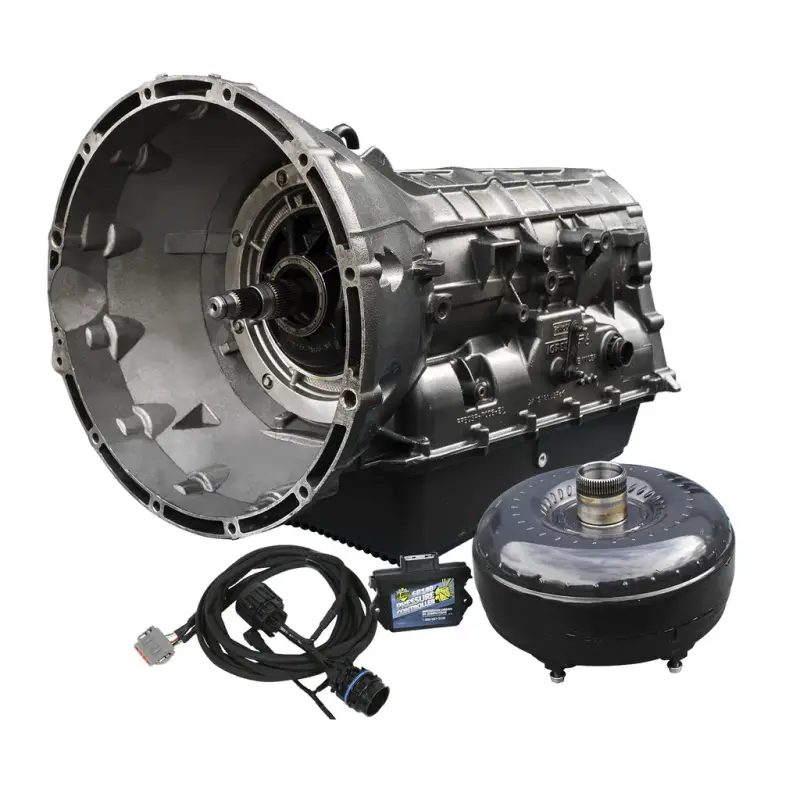

The BD Diesel 1064504SS TowMaster package is a heavy-duty upgrade for 2011-2016 Ford 6.7L Power Stroke trucks with the 6R140 transmission. BD states the transmission and converter are dyno-tested together as a matched set for performance and reliability, helping reduce the guesswork that comes with piecing together separate drivetrain parts.

This package is a smart choice for towing, hauling, and hard-working trucks that need better line pressure and more clutch-holding capacity. BD’s 6R140 setup is listed with an electronic line pressure controller capable of up to 300 psi line pressure, and product listings note 76% more holding power versus stock. The transmission is compatible with both 2WD and 4WD trucks, and fitment listings cover 2011-2016 Ford F-250, F-350, F-450, and F-550 Super Duty applications.

Key Benefits

• Matched transmission and converter package for easier installation and better compatibility.

• Built for towing and heavy-duty use with improved clutch-holding strength.

• Electronic line pressure control for up to 300 psi to help reduce slip under load.

• Includes a heavy-duty pan for added fluid capacity and improved thermal management.

• Fits both 2WD and 4WD Ford Super Duty trucks from 2011-2016.

Recommended Add-Ons

• BD 6R140 Pressure Controller.

• BD Diesel Billet Flexplate for 6 bolt converters 1041245

• Fresh transmission fluid and filters for installation service.

• Updated cooler lines or a transmission cooler if the truck is used for frequent towing. See the Driven Diesel Transmission Cooler Here

Warranty and Notes

Parts Warranty: 3 Years

Labor Warranty: 1 Year

Install Time: 12 Hours

Transmission cooler replacement recommended when replacing a transmission.

Symptoms This Addresses

Common signs of 6R140 wear or failure include slipping under load, harsh shifting, delayed engagement, overheating, and poor towing performance. A related troubleshooting note for the 6R140 pressure controller mentions checking for pushed-out or bent pins at the transmission connector if fault codes appear.

FAQ

Will this fit my truck? Yes, it is listed for 2011-2016 Ford 6.7L Power Stroke Super Duty trucks in both 2WD and 4WD.

Is this good for towing? Yes, BD positions this package for improved towing reliability and stronger clutch holding under load.

Do I need extra parts? We recommend transmission fluid, filters, and the BD pressure controller as the most important companion upgrade. We also strongly suggest replacing the transmission cooler at the same time.

Does it include a warranty? BD backs the product with a 3 year parts, 1 year labor warranty.
