Stanadyne 608990 DCR Conversion Kit - L5P Duramax Fuel Pump Upgrade

Overview & Why Upgrade?

The Stanadyne 608990 is a game-changing fuel pump conversion kit designed specifically for the 2017-2025 L5P Duramax engine. It replaces the factory Denso HP4 pump with a proven, more reliable Stanadyne DCR (Denso Common Rail) system that delivers superior pressure, flow, and durability.

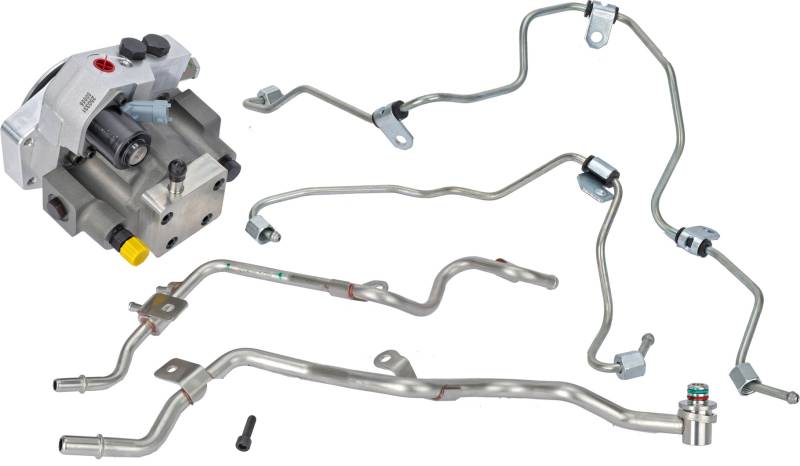

What's Included in Your Kit

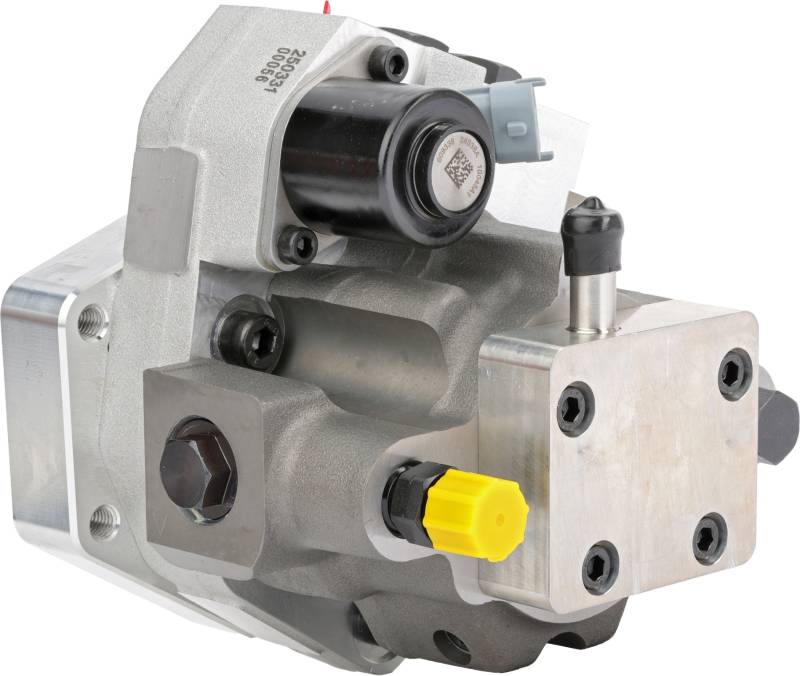

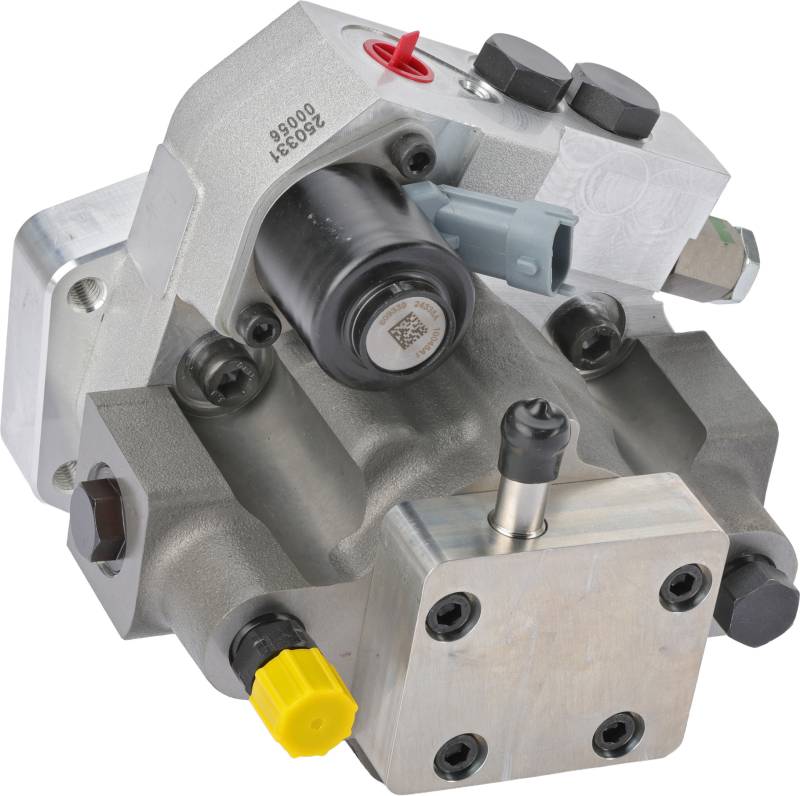

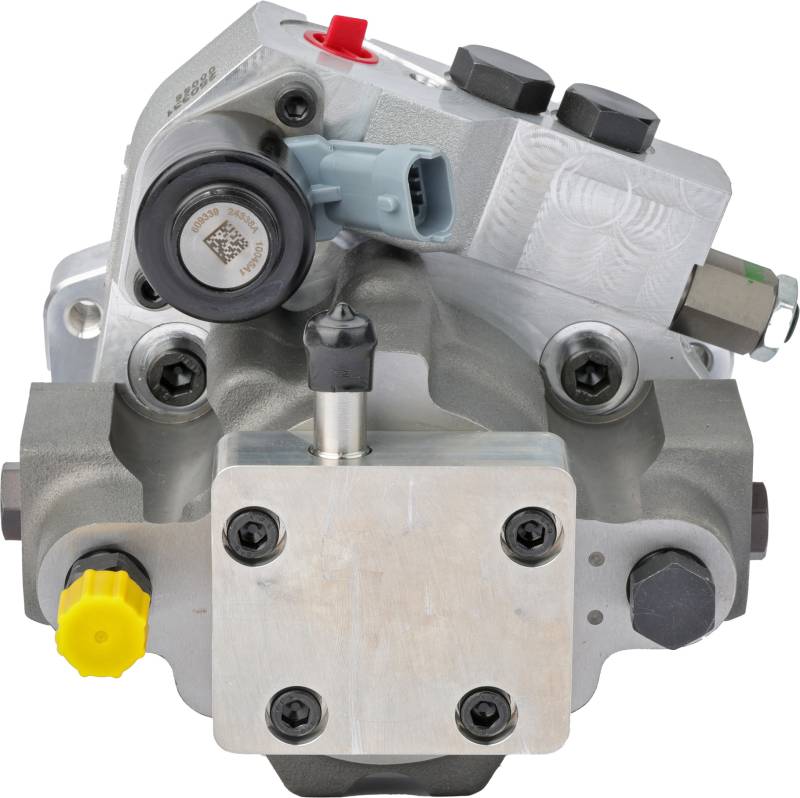

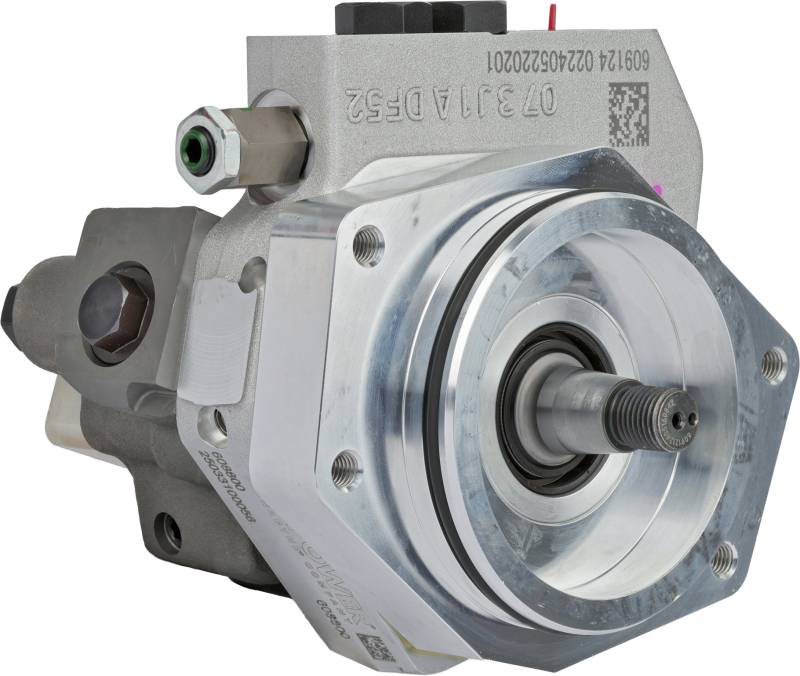

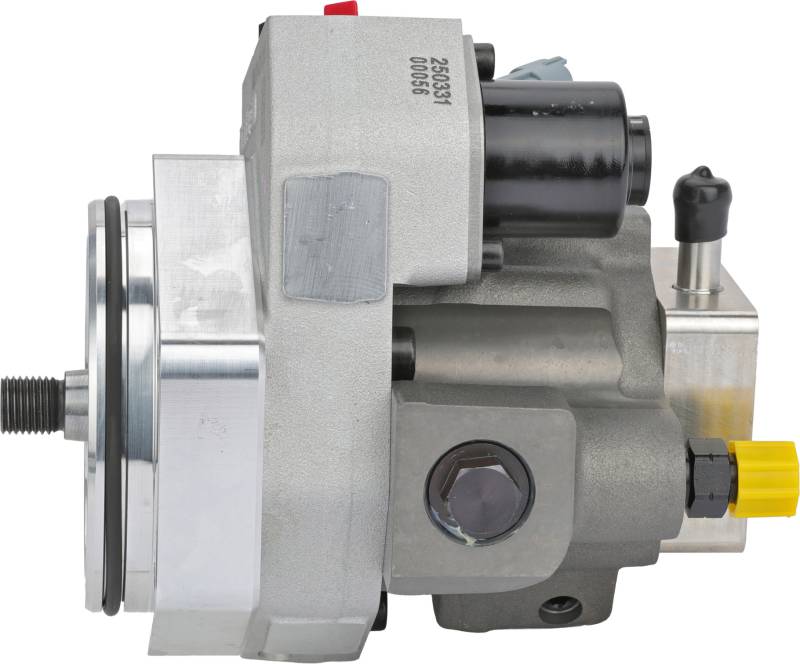

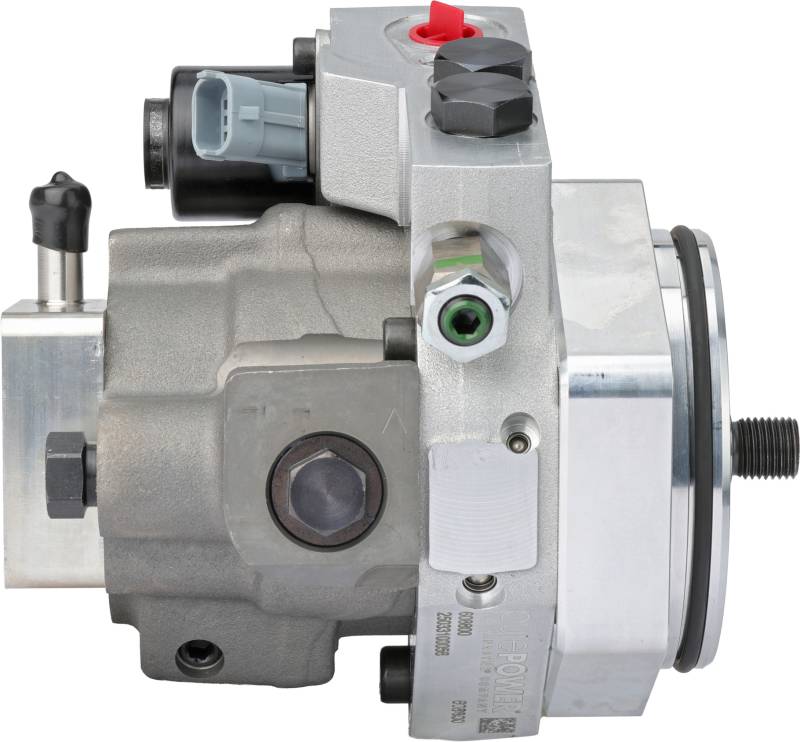

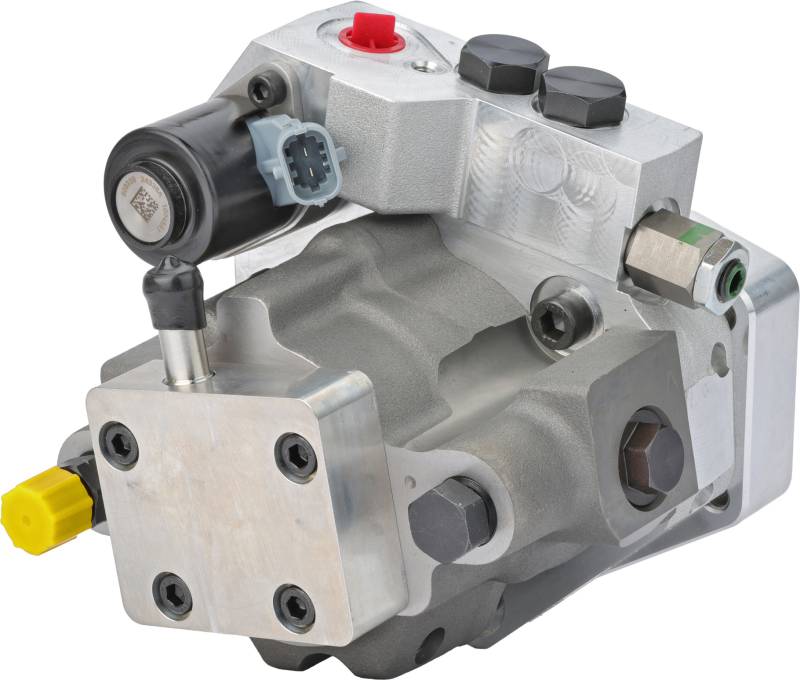

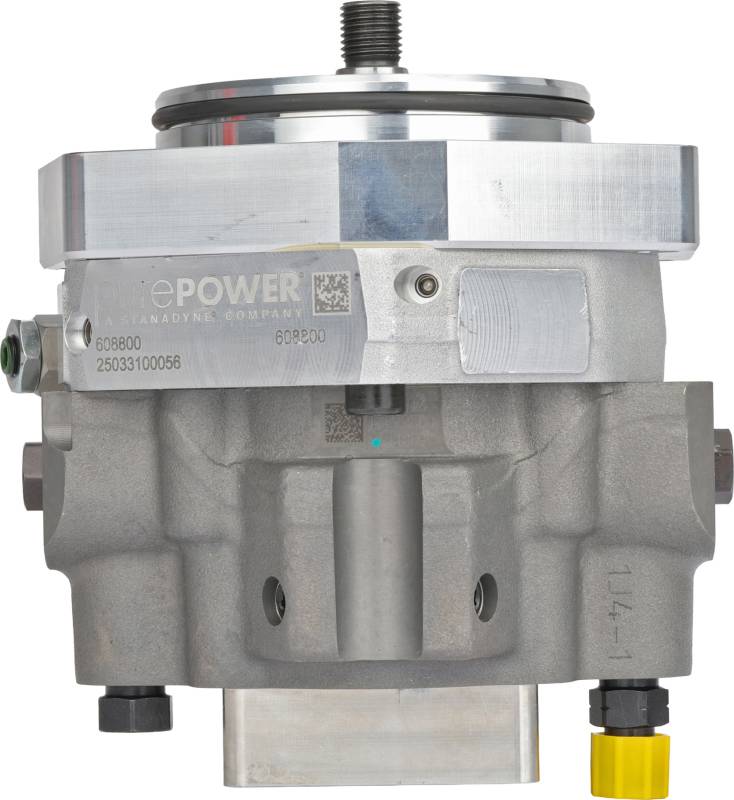

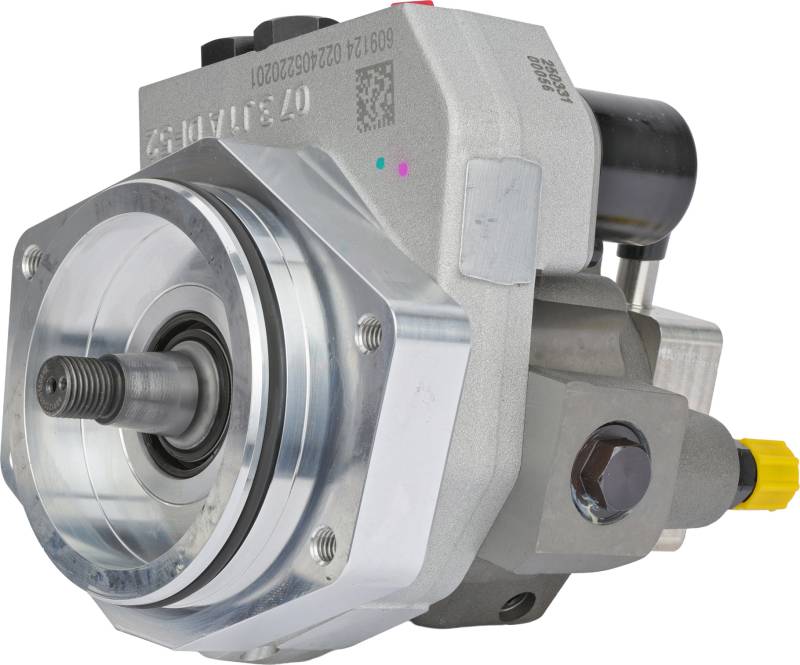

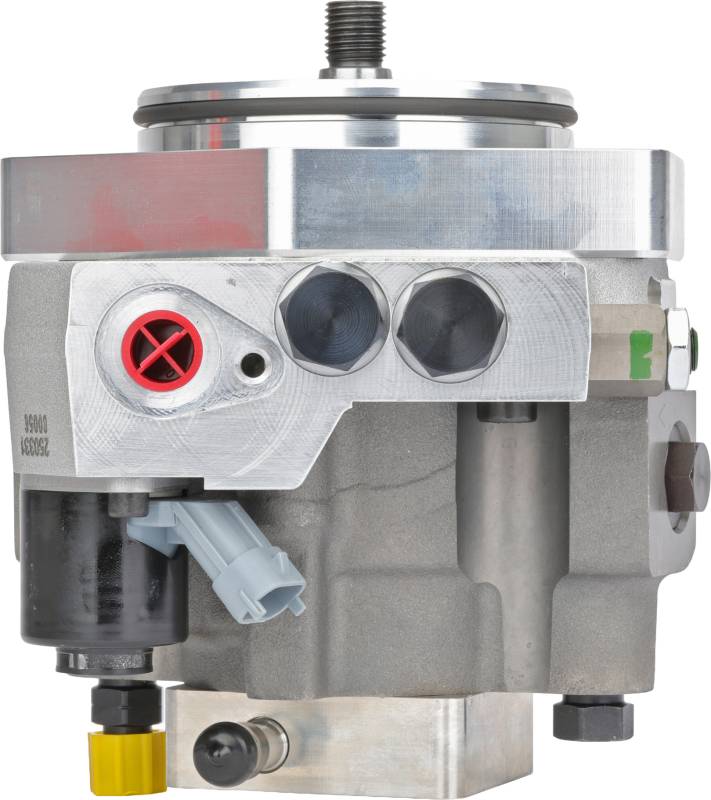

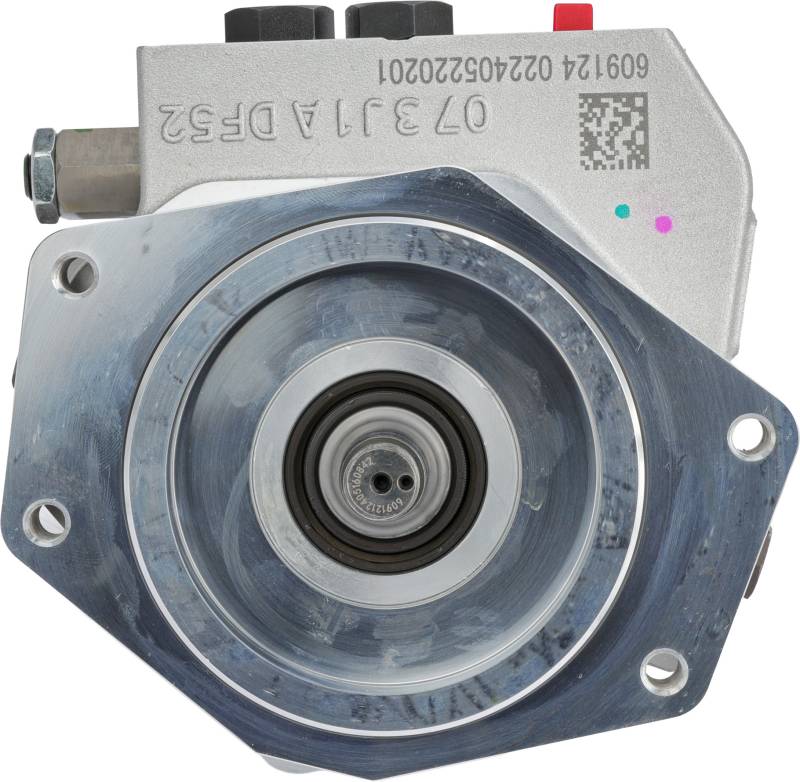

• Stanadyne DCR High-Pressure Fuel Pump – Complete assembled pump with integrated fuel control actuator
• OEM-Grade Fuel Lines & Fittings – Pre-cut and tested high-pressure hose lines
• Installation Hardware – All clamps, brackets, and fasteners
• Complete Installation Instructions – Step-by-step guide with torque specifications
• Warranty Documentation – Full coverage & support

The Denso HP4 Problem: Why Replace It?

While the Denso HP4 is a massive improvement over the earlier Bosch CP4 system used in the LML Duramax, owners have reported several intermittent failure modes:

Common HP4 Failure Modes

• Fuel Pressure Regulation Drift – The fuel pressure regulator can gradually lose accuracy, causing inconsistent rail pressure and triggering codes like P0087, P0088, or P0093.
• Metal Contamination – Internal wear produces microscopic metal particles that circulate through fuel injectors and rails, causing sequential failures in downstream components.
• Flow Rate Degradation – Over time, the pump output can drop below OEM specification, limiting power delivery and causing hesitation under heavy load or towing.
• Lubricity Sensitivity – The HP4 is sensitive to fuel quality and low-sulfur diesel lubricity issues, especially in modified or high-performance applications.

Common Trouble Codes from HP4 Issues

Symptoms of HP4 Failure

• Check Engine Light or multiple related codes
• Loss of power or inability to reach full boost
• Rough idle or surging at cruise
• Hard cold starts or extended cranking
• Hesitation under heavy throttle or towing
• Metallic debris in fuel filters or fuel rails
• Engine going into limp mode or reduced power mode

Technical Specifications & Performance

Stanadyne DCR Pump Specifications vs Stock HP4

Key Advantages Over Stock HP4

• 10% Higher Pressure Capability – 200 bar additional capacity for modified engines
• Superior Fuel Flow – Maintains output throughout entire RPM range without plateauing
• Reduced Wear & Contamination – Pressure-lubricated design eliminates metal shaving generation
• Fuel Quality Independence – Biofuel and low-lubricity diesel compatible
• Longer Service Life – Proven Stanadyne technology with 100,000+ hour field testing
• Drop-In Compatibility – No ECU tuning required; OEM fuel curve maintained

Cross Reference Numbers & OEM Parts

Stanadyne 608990 Cross References

Compatible OEM Stock Pump Numbers (What You're Replacing)

Fuel System Component Compatibility

Fuel Injectors: The 608990 DCR conversion is fully compatible with factory Denso injectors and all aftermarket performance injector sets (Alliant Power, Industrial Injection, etc.)

Lift Pump: Compatible with factory in-tank pump; recommended upgrade to FASS or AirDog for enhanced filtration and pressure consistency

Fuel Filters: Works with all L5P OEM and aftermarket filter housings; no modifications required

Installation & Vehicle Compatibility

Fitment Information

Professional Installation Note

Stock & Modified Engine Compatibility

• Stock Trucks: Direct bolt-in; all factory safety and emissions systems remain active
• Tuned Trucks (0-100hp): Excellent reliability; maintains OEM fuel curve
• Modified Trucks (100-300hp+): Superior performance; can support aggressive injector sizing and timing
• Towing Applications: Preferred for heavy-duty towing; maintains consistent fuel pressure under load

Frequently Asked Questions

What is the difference between DCR and CP3 conversions for the L5P?

DCR Conversion (608990): The Stanadyne DCR is a direct replacement for the HP4 that maintains OEM fuel pressure curves and requires zero ECU tuning. It's ideal for stock and mildly modified trucks prioritizing reliability and ease of installation.

CP3 Conversion: The classic LML CP3 pump increases fuel flow significantly (similar to older Duramax trucks) but plateaus at lower RPM, requires complex tuning integration, and has become less popular with newer L5P modifications due to the superior fuel delivery characteristics of the DCR.

Our Recommendation: For most L5P owners, the DCR conversion is the superior choice due to its modern design, reliability, and simplicity.

Will the 608990 work with my custom tuning and injectors?

Yes! The Stanadyne 608990 is fully compatible with all popular L5P tuning platforms (HP Tuners, EFI Live) and any aftermarket injector set. The DCR's superior pressure capacity and flow rate actually make it an ideal pairing with performance modifications.

Many tuners recommend upgrading to the 608990 before aggressive tuning to ensure adequate fuel system headroom. The extra 10% pressure margin allows for bolder timing advances without risking fuel starvation.

Is ECU reprogramming required after installation?

No. The Stanadyne 608990 is engineered to match the factory L5P fuel pressure curve across the entire RPM range. Your factory ECU calibration remains unchanged and fully compatible.

Optional: Some owners choose to have a professional tuner validate the fuel pressure table and make minor adjustments for peace of mind, but this is not required for safe operation.

What troubleshooting codes will be eliminated after conversion?

If your truck currently has codes like P0087, P0088, P0093, P00C6, P228C, or P129F (all related to fuel pressure regulation), upgrading to the 608990 will typically eliminate these permanently.

Note: After installation, always clear codes and perform a fuel system pressure test to verify proper operation. Some codes may require the ECU to relearn fuel pressure parameters (typically 10-20 minutes of driving).

How does this pump compare to other aftermarket options (S&S Diesel, PurePower)?

The Stanadyne 608990 IS the S&S Diesel / PurePower solution for the L5P. Stanadyne owns PurePower Technologies, so all the Alliant Power and S&S Diesel-branded DCR L5P conversions use the identical 608990 pump and design.

Other options like CP3 conversions have more history in the market but don't offer the same modern pressure capabilities or RPM-dependent flow consistency of the dual-piston DCR design.

What happens if the original HP4 already has metal contamination?

If you suspect metal contamination from the failing HP4, you should perform a complete fuel system flush and flush injection system cleaning before running the new 608990. Simply replacing the pump without cleaning contaminants can lead to injector failure.

Recommended Procedure: Remove fuel rails, inspect for metal debris, flush all lines, replace fuel filters, and consider an injector cleaning service. This adds 2-3 hours to your installation but prevents costly injector damage.

What warranty comes with the 608990?

All Stanadyne DCR conversions through NorCal Diesel Performance include a 2-year, unlimited-mileage manufacturer warranty covering all defects in materials and workmanship.

Warranty Coverage: Pump failure, fuel control actuator defects, included fuel lines and fittings. Not Covered: Fuel contamination damage, improper installation, modifications outside factory specifications.

Can I install this myself, or do I need a professional shop?

While technically DIY-capable for experienced diesel technicians, professional installation is highly recommended. Here's why:

• Requires proper fuel system tools and specialty equipment
• Critical torque specifications (under/over-tightening causes leaks)
• Fuel contamination prevention during disassembly
• Pressure testing and validation after installation
• Access to proper shop ramp and hydraulic lift equipment

Professional shops typically charge $2800-4,500 for labor. Contact us for installation pricing at our Northern California location.

How often does the DCR pump need maintenance or servicing?

The Stanadyne DCR requires no special maintenance beyond standard fuel system care:

• Replace fuel filters every 10,000-15,000 miles (or per your tuning manufacturer's recommendation)
• Inspect water separator regularly (monthly in harsh conditions)
• Use quality diesel fuel and consider fuel additives for system cleaning
• Annual fuel system pressure test (optional but recommended)

The pressure-lubricated design means zero internal wear of traditional pump components, giving you 200,000+ miles of reliable service.

Is the 608990 legal for street use and emissions?

Yes! The Stanadyne 608990 maintains factory fuel pressure curves and aftertreatment system function, keeping all emissions equipment operational. It's legal for 49-state street use with no modifications to emissions systems. California CARB testing Pending.

Key Point: Unlike tuning changes or injector modifications, the 608990 fuel pump conversion does not affect emissions compliance when installed as a direct replacement for a failed HP4.

Why Choose NorCal Diesel Performance?

We're your trusted resource for understanding modern diesel fuel system upgrades, emissions compliance, and performance modifications for your L5P Duramax.

Expert Product Knowledge

• Deep Technical Expertise: Our team stays current on the latest fuel pump technology, OEM specifications, and real-world performance data. We provide detailed consultation to help you make informed decisions about upgrades.
• Transparent Information: We give you accurate information about what works, what doesn't, and why—including honest guidance on emissions compliance, legal considerations, and installation requirements.
• Cross-Platform Compatibility: We understand how fuel system upgrades integrate with popular tuning platforms (HP Tuners, EFI Live), injector options, and other performance modifications.

Comprehensive Pre-Sale Support

• Diagnostic Consultation: Describe your truck's symptoms or trouble codes, and we'll help identify whether a fuel system upgrade is the right solution for your situation.
• Fitment & Compatibility Review: We verify compatibility with your specific year/model, transmission, current modifications, and future upgrade plans.
• Installation Guidance: We provide detailed information about installation complexity, required tools, and best practices—helping you decide between DIY and professional installation.
• Post-Sale Support: Questions after purchase? We're here to help with troubleshooting, pressure testing procedures, and next steps.

Quality Source & Fast Fulfillment

• Authorized Dealer: We source directly from Alliant Power (Stanadyne's official distributor) ensuring genuine products with full manufacturer warranty support.
• Rapid Dropship Delivery: Orders ship directly from our supplier warehouse within 1-2 business days with tracking information.
• Warranty Advocacy: We help facilitate warranty claims and provide documentation support if issues arise post-installation.

Northern California Diesel Community

• Local Authority: We understand California's CARB emissions requirements, legal modification boundaries, and real-world performance expectations for the L5P platform.
• Community Focus: We stay engaged with local diesel enthusiasts, shops, and performance communities to understand actual field experiences and long-term reliability data.
• Honest Recommendations: We won't sell you something that won't work for your specific needs or legal jurisdiction. Your long-term satisfaction matters more than a single sale.

What We Don't Do (And Why That's Good)

We believe in transparency about our limitations:

• California Installation Limitation: Due to CARB restrictions on diesel fuel system modifications, we cannot provide installation services in California. However, we provide complete technical guidance for out-of-state shops or qualified installers.
• No In-House Testing: We don't perform pump flow rate or pressure testing—that requires specialized dyno equipment and certification. Instead, we rely on Alliant Power's factory testing and extensive field data.
• No ECU Tuning: Fuel system upgrades and tuning are separate services best handled by specialized tuning companies with real-time datalogging capabilities. We help you understand compatibility but don't perform tuning work.

Your Next Step

Whether you're diagnosing a failing HP4, planning a performance build, or just learning about L5P fuel system options, we're here to provide the information and expert guidance you need to make the right decision for your truck.
