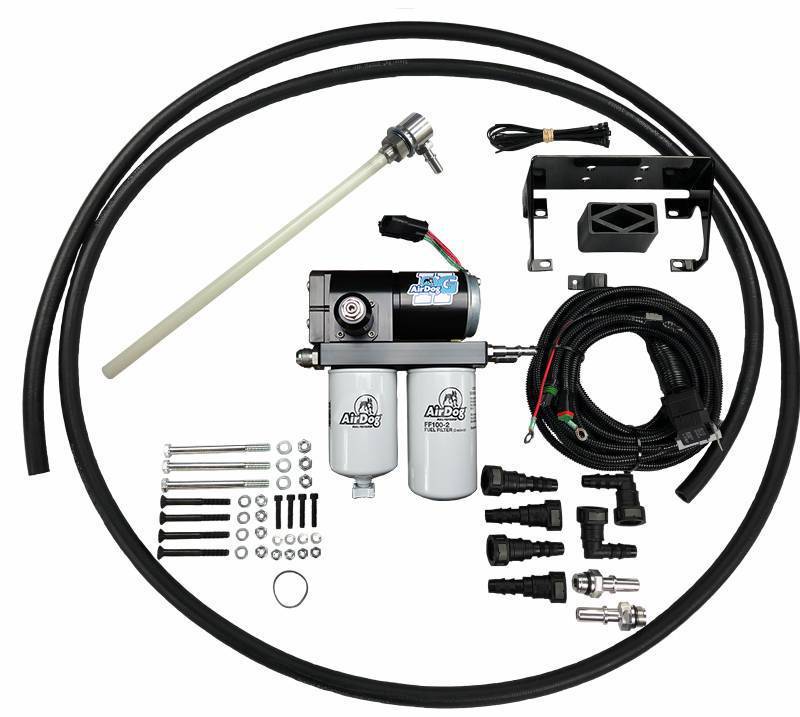

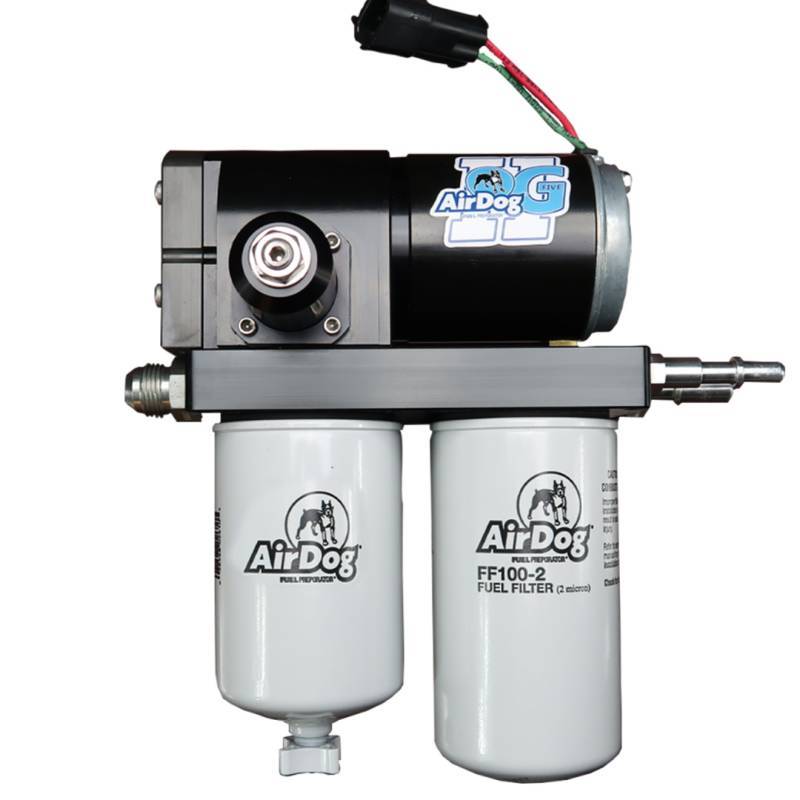

Build your 2011-2014 GM 6.6L Duramax fuel-supply setup around the AirDog II-5G DF-220-5G. This 220 GPH AirDog fuel system combines an application-specific lift-pump installation with an air/vapor return circuit.
Key details
- Manufacturer part number: A7SABC514
- Series: AirDog II-5G
- Model: DF-220-5G
- Nominal flow rating: 220 GPH
- Fuel type: Diesel
- Application: 2011-2014 GM 6.6L Duramax
- Engine family: Duramax
- Engine designation: LML
- Sold as: Kit
- Country of origin: US
- Fuel pressure: 8-10 psi (factory preset)
- Included filtration: 2-micron fuel filter and water separator, as listed in the linked application manual
Fitment and ordering notes
- Application range: 2011-2014 GM 6.6L Duramax. Confirm the engine and existing fuel-system configuration before ordering.
- This listing is limited to 2011-2014; a shared LML engine code does not make the adjacent-year kit interchangeable.
Installation overview
- Requires the WAP109 5/8-inch suction tube and 5/8-inch suction hose, with fuel-tank access for installation unless a suitable sump is used.
- Uses a frame-standoff/cradle-bracket installation in front of the fuel tank.
- Air/vapor return connects to the modified fuel module; retain the original engine return.
- 2011-2014 and 2015-2016 kits use different wiring-harness applications. Order by the vehicle year, not just the shared LML engine designation.
Tech tips
- Choose flow capacity around the complete fuel system and intended use; a GPH rating is not a guaranteed horsepower or fuel-economy gain.
- Use the exact kit's installation instructions for hose routing, electrical connections, priming, leak checks and operating-pressure verification.
- Confirm tank, pickup and filtration modifications before scheduling installation. The overview above does not replace the installation manual.
Installation reference
Application installation manual. Check the instructions supplied with the current kit for revision-specific hardware and settings.
Warranty and registration
The linked application manual describes a limited lifetime warranty for the original purchaser, subject to registration and proof of purchase within 30 days; otherwise it states one year. Filters and water separators are excluded. Review the applicable terms and register with AirDog.
