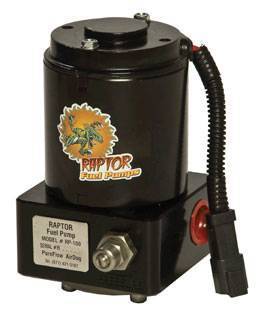

Build your 2011-2014 GM 6.6L Duramax fuel-supply setup around the AirDog Raptor 4G RP-4G-100. This 100 GPH Raptor pump kit provides an application-specific fuel-delivery option without adding an AirDog dual-filter assembly.
Key details
- Manufacturer part number: R4SBC134
- Series: AirDog Raptor 4G
- Model: RP-4G-100
- Nominal flow rating: 100 GPH
- Fuel type: Diesel
- Application: 2011-2014 GM 6.6L Duramax
- Engine family: Duramax
- Engine designation: LML

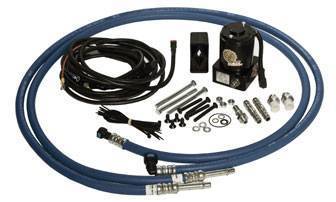

- Sold as: Kit
- Country of origin: US
Fitment and ordering notes
- Application range: 2011-2014 GM 6.6L Duramax. Confirm the engine and existing fuel-system configuration before ordering.
- This listing is limited to 2011-2014; a shared LML engine code does not make the adjacent-year kit interchangeable.
Installation overview
- Mounts to the frame jig in front of the fuel tank for the application-specific installation.
- The suction line connects to the factory suction fitting on top of the fuel module.
- The pressure side connects to the factory injection pump feed line on the frame.
- Internal regulation eliminates a separate pump-return line; retain the engine's original return circuit.
- Pump kit, not an AirDog dual-filter/air-separation assembly. Do not remove required fuel filtration.
Tech tips
- Choose flow capacity around the complete fuel system and intended use; a GPH rating is not a guaranteed horsepower or fuel-economy gain.
- Use the exact kit's installation instructions for hose routing, electrical connections, priming, leak checks and operating-pressure verification.
- Confirm tank, pickup and filtration modifications before scheduling installation. The overview above does not replace the installation manual.
Installation resources and warranty
Use the exact part number to locate the applicable instructions in the AirDog resource library. Confirm warranty terms for this model and complete the manufacturer registration as required.
