A customer called and stated he changed his fuel filters and after had a low pressure fuel light come on the message center. I know what you all are thinking, its the lower filter, and most of the time you would be correct. In fact that's what I immediately though also. Cheap aftermarket filters you get from Autozone or O'Reillys are usually don't fit well and are sometimes missing seals or gaskets. We have seen many issues with filters sucking air through the lower filter or just not seating correctly. Changing the fuel filters with Quality OE or aftermarket filters usually fixes the concern. OE fuel filter / water separator is a 10 micron filter. Secondary filter is 4 microns.
First things first you should check codes. This one had a P008A Low Fuel Pressure Too Low. Following the pinpoint test it states you need to check mechanical fuel pressure (2011-2014 trucks) or if you have a 2015+ you should have a low pressure fuel pressure sensor and be able to check it with the scan tool. We had a sensor and it was reading 50-52 PSI idle. Fuel pressure specs are tough to find, here is what we found.
Fuel Pressure Specs
| Condition | Low Pressure Spec (psi) |
|---|---|
| Minimum before warning | 52 |
| Normal operating range (11-16) | 53–73 |
| Typical idle (2017+) | 58 |
| Typical cruise/WOT (2017+) | 68 |

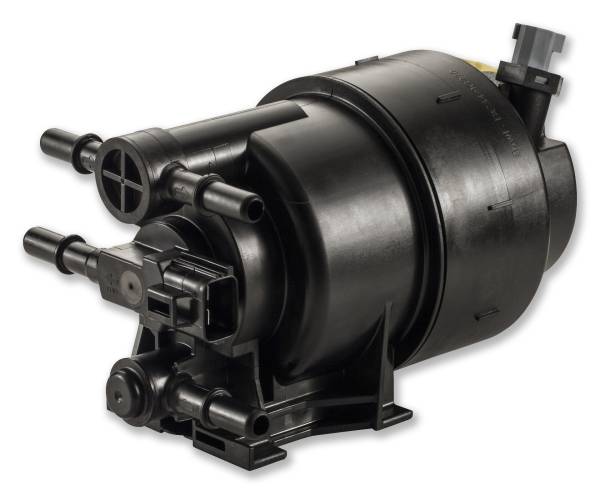

Next step if you are low which I would assume you are if you are reading this is to check the lower filter. Remove the cup and inspect the seals for rolled o-rings, damage to the upper seat or debris in the filter. Sometimes pulling it, cleaning it out and putting it back together can do the trick. In the event you need to replace the pump you can find one from Alliant Power here.
If fuel filters are okay and your pump seems good you should check power and ground at the pump. Ensure you are getting proper voltage and a good ground to rule out an amperage load concern.
Often times the repair manual will tell you to install a known good part. Who has that laying around? And once installed do you think you can return it? Nope. Not a chance. So here is where things can get hairy. I like to explain situations like a process. I like to be sure before replacing parts. Here is what we did.
First if we have low pressure we need to check supply from the tank to ensure its not aeriated. Air from the sending unit will cause cavitation in the pump and result in low fuel pressure. Clear plastic hose will be your friend. These are 1/2" lines. We ran clear plastic hose on the inlet and outlet of the pump to ensure no air was coming from the tank or being pumped to the high pressure pump at the engine.
You can find Fleece Performance Sending units here. Made of metal, not plastic and a perfect fix at a great price. 2011-2016 Ford 6.7L Fuel Supply Parts

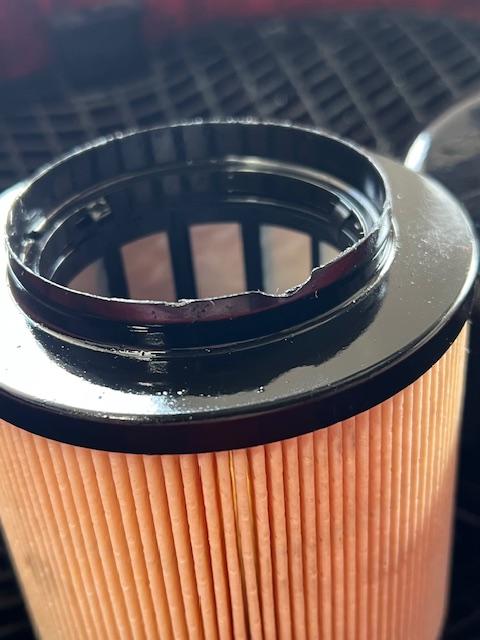

What we found was the pump was priming and holding a primer seal after shutting off, but was pumping aeriation to the engine on the outlet side of the pump. We pulled the lower filter and found a chunk of plastic from the filter was broken off and went through the low pressure pump. We replaced the pump and repaired the aeriation concern. Fuel pressure improved to 52-54 psi but after a while the low pressure warning lamp would return and pressure would sit at 52 idle. Looking at the chart below 52 is the threshold for the low warning indicator.
Next step we went to the high pressure system. Excessive return flow will cause this concern also. Return from the injectors and pump can be checked independently at the secondary fuel filter.
Looking at the fuel filter there are typically 2 ports on the upper filter. One is supply from the lift pump and the other is feed to the high pressure pump. The return from the injectors and feed back into the inlet hose of the filter, removing that tee fitting and putting the hose into a graduated cup will give you injector return flow. Spec per injector is 3 milliliters (ml) in 15 seconds while cranking or at idle. Do the math and you shouldn't have more than 24 (ml). If they are good you won't have anywhere near that amount of return. For reference ours was 7 (ml).
If you need new injectors, buy the best ones available. Bosch OEM available at norcaldieselperformance.com. 2011-2014, 2015-2019, 2020-2022
Moving on we checked the return flow from the Injection pump, in this case the customer installed a DCR already. DCR return was well over excessive to the point where we needed a bigger cup. Knowing this was out issue we installed a clear hose on the return side of the pump and checked for air. We saw bubbles and that continued for 20-30 seconds until the air purged out. After which the base fuel pressure jumped from 52 to 64 psi. Clean clear fuel in, aeriated fuel out. It was the pump. But why? DCR pumps are flawless. Probably one of the best upgrades you can do on a Ford 6.7L.
It was the filters fault. Plastic from the lower filter broke off and somehow made it through the secondary filter and into the DCR pump regulator. We cleaned the FCA but the debris was deeper. Luckily we were able to send the pump out to S&S and for a small fee they repaired it and returned it to us for installation.
So now what do we do? Fix it and use good parts. Motorcraft Filters, Bosch Filters, Racor, Baldwin, Donaldson. All Good Filters.
Install a DCR if you haven't already. You will thank us later. OE CP4 Pumps usually fail at 100k-150k miles.
Install the Fleece Secondary Fuel Filter with spin on Donaldson P555095 filter. Link
Use a Fuel Additive, XDP Diesel Power Plus, Justice Brothers Diesel Fuel Supplement.
Run Good fuel. #2 or B20. No Propel, HPR or R95 unless you like repair bills.
Do your regular maintenance. It's amazing the cost savings in maintenance vs repairs.
