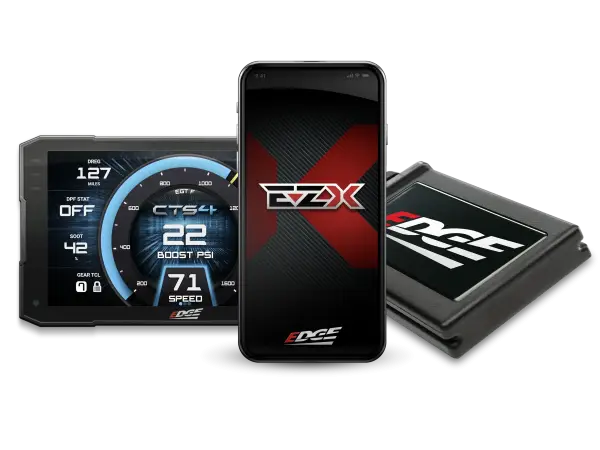

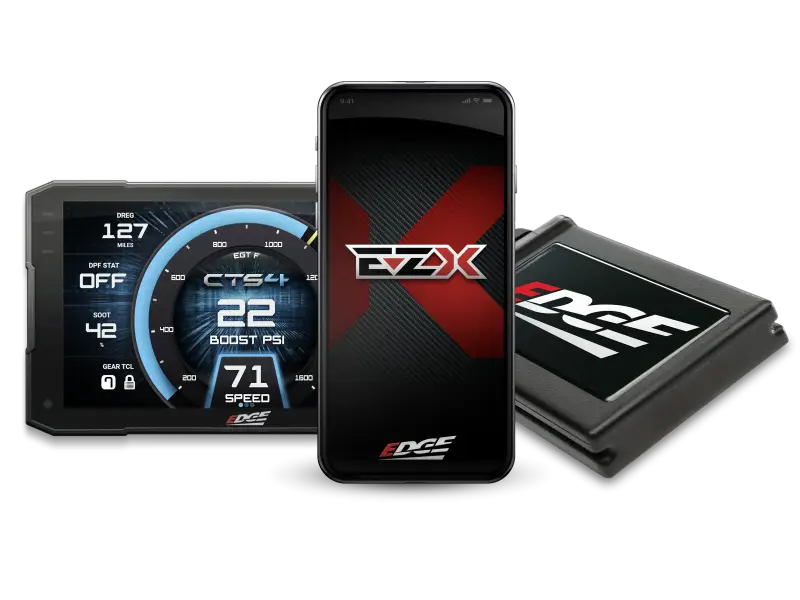

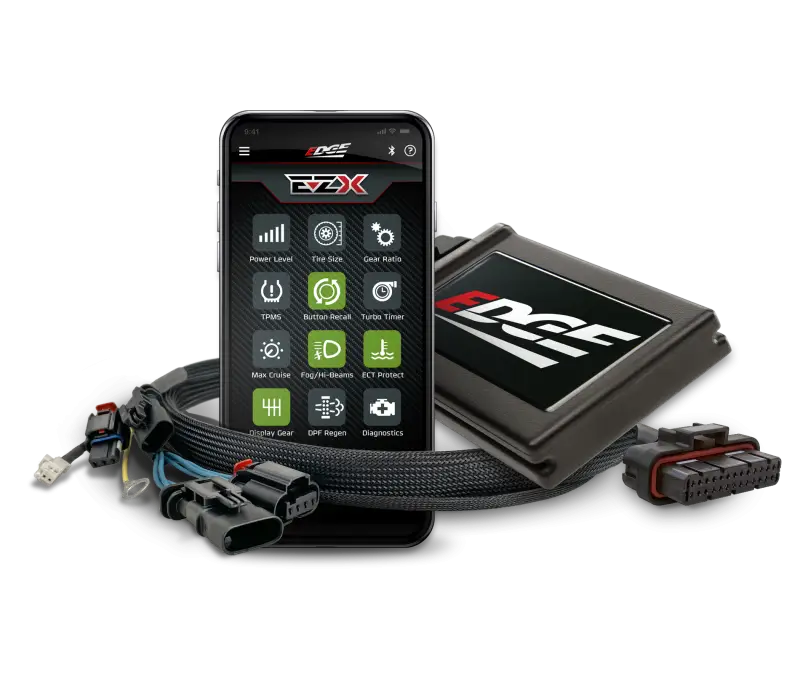

The Edge 32711-4 EZX Kit with Insight CTS4 combines adjustable diesel performance, smartphone-based vehicle controls, and in-cab digital monitoring for 2013-2018 Ram 2500 and 3500 trucks equipped with the 6.7L Cummins Turbo Diesel. Five on-the-fly power levels deliver up to 40 additional horsepower and 100 lb-ft of additional torque, with power selection through the factory steering-wheel controls.
More than a basic power module, the EZX adds adjustable throttle sensitivity, tire-size and axle-ratio calibration, engine high-idle control, and supported convenience features through the Edge smartphone app. The included Insight CTS4 provides a dedicated touchscreen for viewing supported vehicle data, logging operating information, and monitoring alerts.
Five selectable performance levels
Published power settings ranging from +10 to +40 HP
Published torque settings ranging from +40 to +100 lb-ft
On-the-fly power selection through factory steering-wheel controls
Adjustable throttle response through the Edge app
Tire-size speedometer calibration for tires up to 40 inches
Axle-ratio calibration
Engine high-idle control while parked
Diagnostic-code reading and clearing through the app
Emissions-readiness checks and supported manual DPF regeneration
Insight CTS4 digital monitoring included
The Edge 32711-4 EZX Kit with Insight CTS4 brings performance adjustment and digital monitoring together for the fourth-generation Ram HD Cummins platform. The EZX module supplies the performance increase and supported vehicle adjustments, while the Insight CTS4 provides a dedicated in-cab display for monitoring vehicle operation.
Edge developed the underlying EZX module for daily driving and towing applications, with compatibility for both Standard Output and High Output 6.7L Cummins engine variants in the supported model years. Five selectable settings allow you to adjust the added power rather than being locked into one fixed performance level.
The EZX system also provides useful adjustments for modified and working trucks. Recalibrate the speedometer after a tire-size change, adjust throttle-pedal sensitivity, configure supported vehicle convenience settings, or activate high idle while parked—all through the appropriate app or factory steering-wheel interface.
The two main components serve different purposes:
| Component | Primary Function |
|---|---|
| EZX inline performance module | Provides added power, adjustable throttle response, and supported vehicle-control features |
| Insight CTS4 digital monitor | Displays supported vehicle data, customizable gauges, alerts, diagnostic information, and data logs |
The EZX supplies the horsepower and torque increase; the Insight CTS4 is the monitoring portion of this package. EZX feature control uses the smartphone app and supported factory steering-wheel functions. Do not confuse this package with a standalone Insight monitor or a conventional flash programmer.
| Power Level | Advertised Horsepower Increase | Advertised Torque Increase |
|---|---|---|
| Level 1 | +10 HP | +40 lb-ft |
| Level 2 | +20 HP | +55 lb-ft |
| Level 3 | +30 HP | +70 lb-ft |
| Level 4 | +35 HP | +85 lb-ft |
| Level 5 | +40 HP | +100 lb-ft |
These figures follow Edge’s published five-level specification for the 2013-2018 Cummins EZX module. They describe added output, not the truck’s total horsepower or torque. Actual results depend on vehicle condition and operating circumstances.

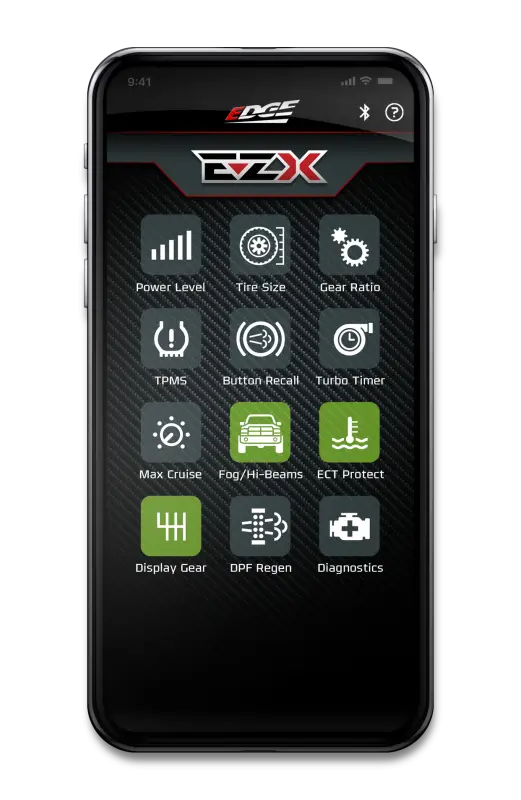

Change power levels through the factory steering-wheel controls without stopping to load a different calibration. The smartphone app provides additional adjustment options, including throttle-booster settings for each power level.
The EZX lets you tailor accelerator-pedal sensitivity to your preferred driving feel. This adjustment is separate from the selected horsepower level, allowing you to change how the truck responds to pedal input rather than relying on a single fixed throttle setting.
The Edge app supports speedometer calibration for tire sizes up to 40 inches, along with axle-ratio calibration. These features are useful when the truck’s tires or differential gearing no longer match its original configuration.
Adjust engine high idle through the factory steering-wheel controls while the truck is in Park. This adds convenient idle-speed control without requiring a separate high-idle switch.
The EZX feature list also includes:
Tow/haul and exhaust-brake button recall
Maximum cruise-control set-speed adjustment
Fog-light operation with high beams
Gear-display functionality
Turbo-timer functionality
Supported TPMS adjustments
Engine-temperature protection settings
Feature availability and operation depend on the truck’s equipment and supported configuration. Follow Edge’s application-specific instructions for setup and use.
Through the EZX app, supported functions include:
Reading and clearing diagnostic trouble codes
Checking emissions-readiness status
Initiating a manual DPF regeneration cycle when the applicable operating conditions are satisfied
Manual regeneration is a service function for the factory diesel particulate filter—not a DPF-delete feature.

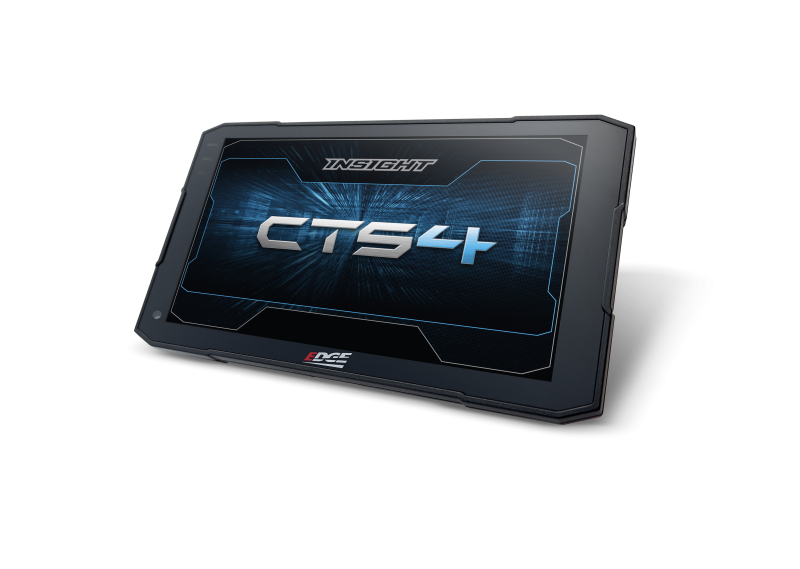

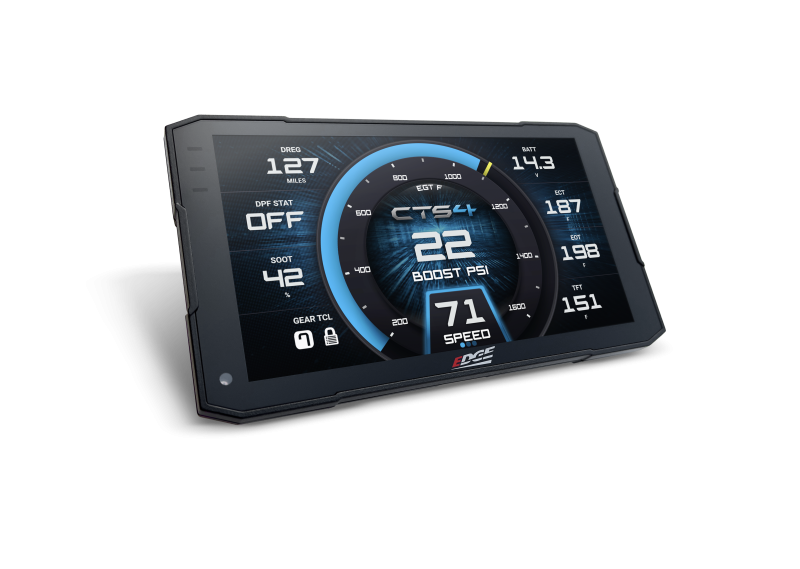

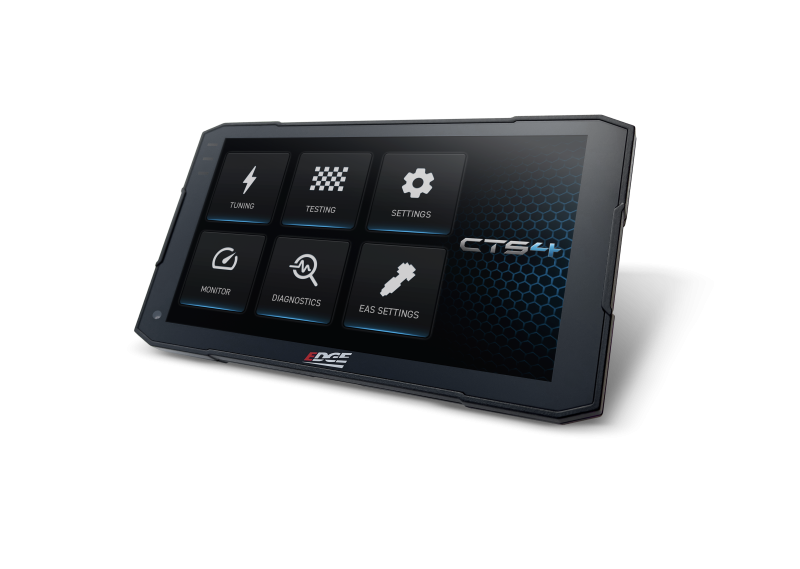

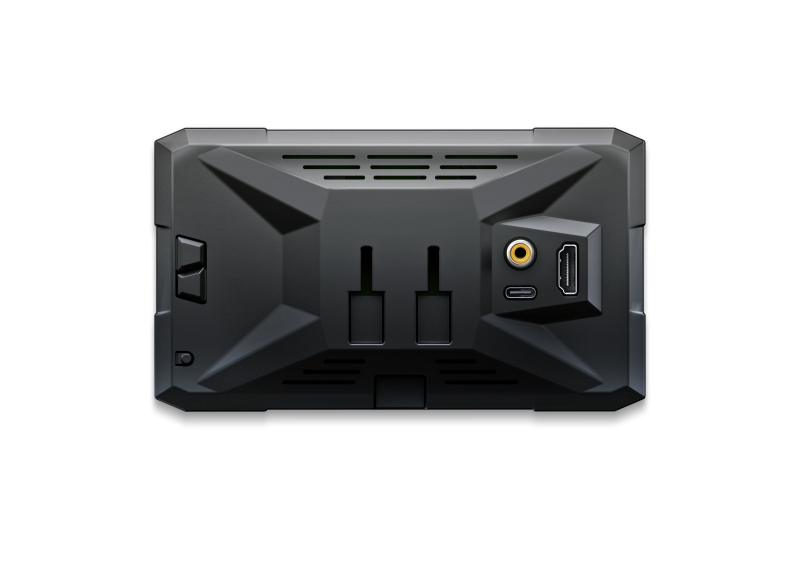

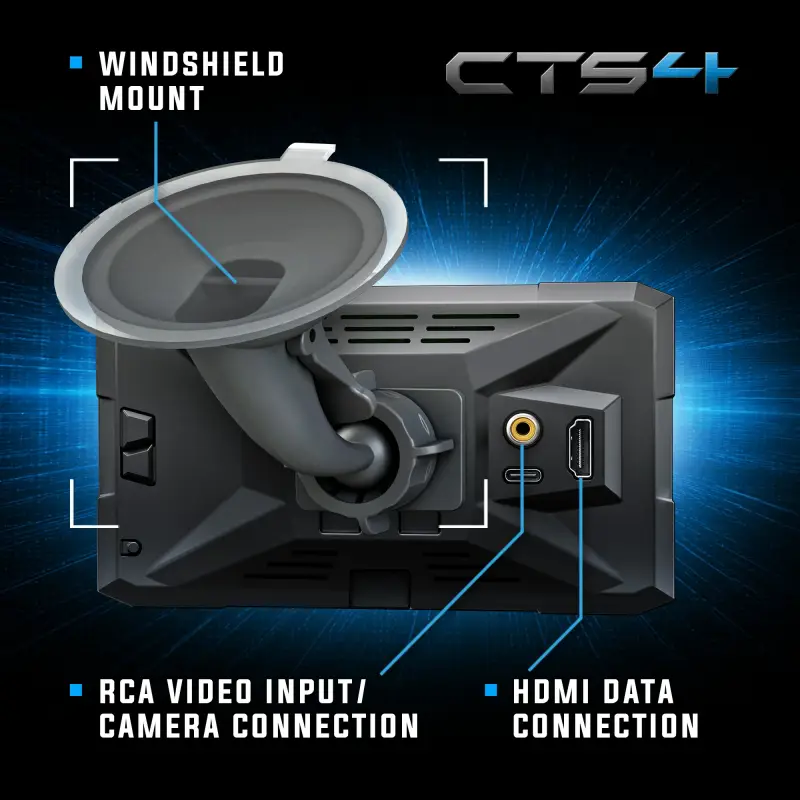

The included Insight CTS4 adds a dedicated touchscreen monitoring platform to the cab. It provides customizable gauges, data logging, diagnostics, and available accessory expansion, giving you a clearer view of supported vehicle operating information.
Display supported vehicle parameters in customizable gauge layouts
Record operating information through data logging
Use available alerts to help track important conditions
Access supported diagnostic functions
Expand the system with compatible optional accessories where applicable
Gauge availability depends on the data supplied by the vehicle and any installed accessories. Do not assume that every possible reading, including external-probe measurements, is included with the base kit.
Edge EZX inline performance module for the supported 2013-2018 Ram Cummins application
Edge Insight CTS4 digital gauge monitor
The EZX is an application-specific inline system. Install its vehicle connections and the CTS4 monitoring connections according to the current Edge instructions.
Individual harnesses, monitor-mount style, fasteners, and accessory contents should be checked against Edge’s current 32711-4 packing list before being separately itemized. External temperature probes, backup cameras, and other optional monitoring accessories should not be advertised as included without confirmation.
| Detail | Application |
|---|---|
| Model years | 2013-2018 |
| Make | Ram |
| Models | 2500 and 3500 |
| Engine | 6.7L Cummins Turbo Diesel |
| Engine variants | Standard Output and High Output |
| Manufacturer part number | 32711-4 |
| Performance system | EZX inline module |
| Included monitor | Insight CTS4 |
The kit is listed for 2013-2018 Ram 2500/3500 6.7L Cummins trucks. Edge identifies the underlying EZX module as compatible with both Standard Output and High Output engines.
| Year | Make | Models | Engine |
|---|---|---|---|
| 2013 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
| 2014 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
| 2015 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
| 2016 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
| 2017 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
| 2018 | Ram | 2500 / 3500 | 6.7L Cummins Turbo Diesel |
Fitment follows the published 2013-2018 Ram 2500/3500 Cummins application. This listing does not establish compatibility with gasoline engines, Ram 1500 trucks, 4500/5500 chassis-cab models, or other model years.
The EZX uses a plug-and-play inline-module design rather than a conventional performance flash-programmer installation. Setup also involves installing the CTS4 display and configuring the smartphone app for supported EZX functions. Follow the current Edge instructions for vehicle connections, wire routing, setup, and feature operation.
Edge’s published power-level chart lists gains up to 40 HP and 100 lb-ft of torque at Level 5. Lower settings provide progressively smaller increases, starting at 10 HP and 40 lb-ft at Level 1.
The EZX supports on-the-fly power-level changes through the factory steering-wheel controls. Additional feature adjustments are available through the Edge smartphone app.
Yes. Edge identifies the 2013-2018 EZX module as compatible with both Standard Output and High Output engine variants within the supported application.
Yes. EZX supports tire-size calibration through the smartphone app for tires up to 40 inches. Axle-ratio calibration is also supported.
Yes. The app provides user-adjustable throttle-booster settings for each power level.
Yes. Engine high idle is adjustable through the factory steering-wheel controls while the truck is in Park.
The EZX app supports reading and clearing trouble codes, checking emissions readiness, and initiating a supported manual DPF regeneration cycle. Follow the manufacturer’s operating requirements before using regeneration functions.
No. In this package, the EZX inline module supplies the performance increase. The Insight CTS4 provides digital monitoring and related diagnostic functions.
A current CARB Executive Order covering part number 32711-4 was not verified. Edge’s standalone 32711 module page references EPA Tampering Policy compliance, but that is not the same as California CARB approval. A supporting application listing identifies the underlying module as not legal for sale or use in California. Confirm the current kit-specific emissions designation before accepting California orders.
| Field | Information |
|---|---|
| Brand | Edge Products |
| Complete CTS4 kit | 32711-4 |
| Related standalone EZX module | 32711 |
| Product family | EZX with Insight CTS4 |
| Vehicle application | 2013-2018 Ram 2500 / 3500 |
| Engine application | 6.7L Cummins Turbo Diesel |
Use 32711-4 when ordering the CTS4-equipped package. Part number 32711 identifies the related standalone EZX module rather than the complete monitor-and-module kit.
