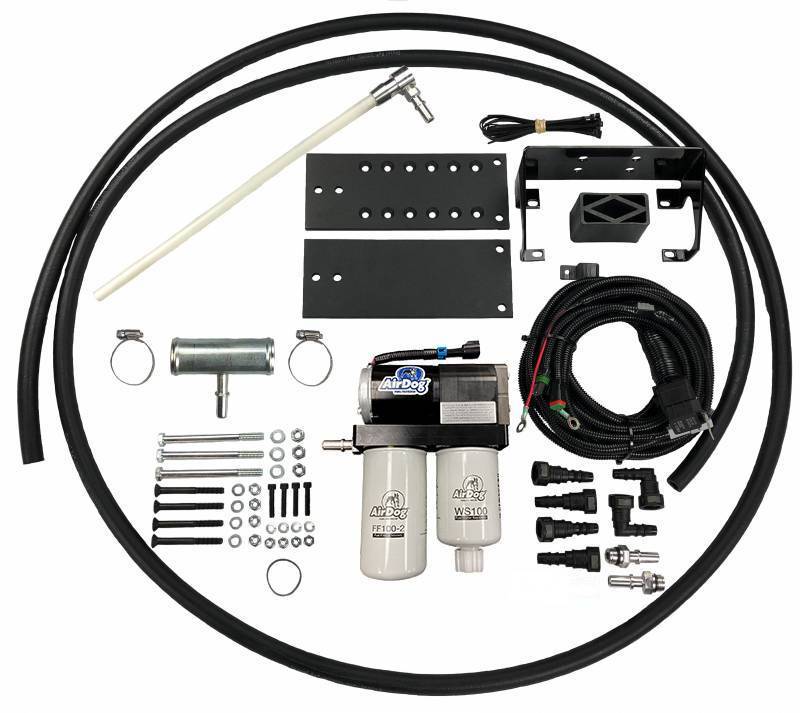

Build your 2019-2024 Ram 6.7L Cummins fuel-supply setup around the AirDog I 4G FP-150-4G. This 150 GPH AirDog fuel system combines an application-specific lift-pump installation with an air/vapor return circuit.
Key details
- Manufacturer part number: A4SPBD109
- Series: AirDog I 4G
- Model: FP-150-4G
- Nominal flow rating: 150 GPH
- Fuel type: Diesel
- Application: 2019-2024 Ram 6.7L Cummins
- Engine family: Cummins
- Valvetrain: 24V
- Sold as: Kit
- Country of origin: US
Fitment and ordering notes
- Application range: 2019-2024 Ram 6.7L Cummins. Confirm the engine and existing fuel-system configuration before ordering.
Installation overview
- Mounts to the frame rail using the supplied sandwich plate mounting system.
- A 1/2 Inch draw straw is used to pull fuel from the tank, bypassing the in-tank fuel pump.
- The pressure side connects directly to the factory fuel filter housing.
- The AirDog Air/Vapor return is sent back to the tank through a filler neck tee.
Tech tips
- Choose flow capacity around the complete fuel system and intended use; a GPH rating is not a guaranteed horsepower or fuel-economy gain.
- Use the exact kit's installation instructions for hose routing, electrical connections, priming, leak checks and operating-pressure verification.
- Confirm tank, pickup and filtration modifications before scheduling installation. The overview above does not replace the installation manual.
Installation resources and warranty
Use the exact part number to locate the applicable instructions in the AirDog resource library. Confirm warranty terms for this model and complete the manufacturer registration as required.
