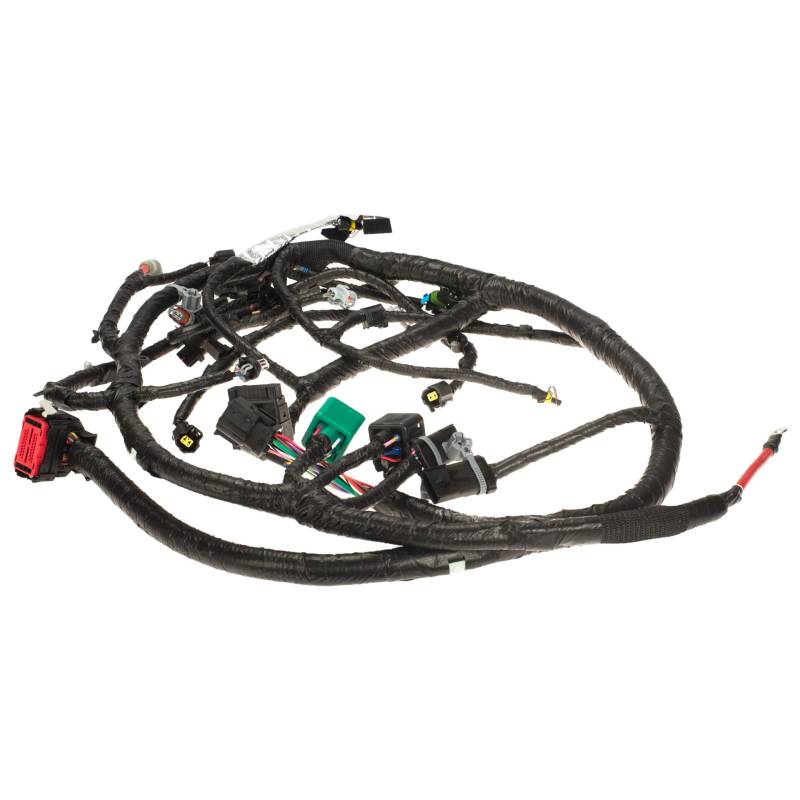

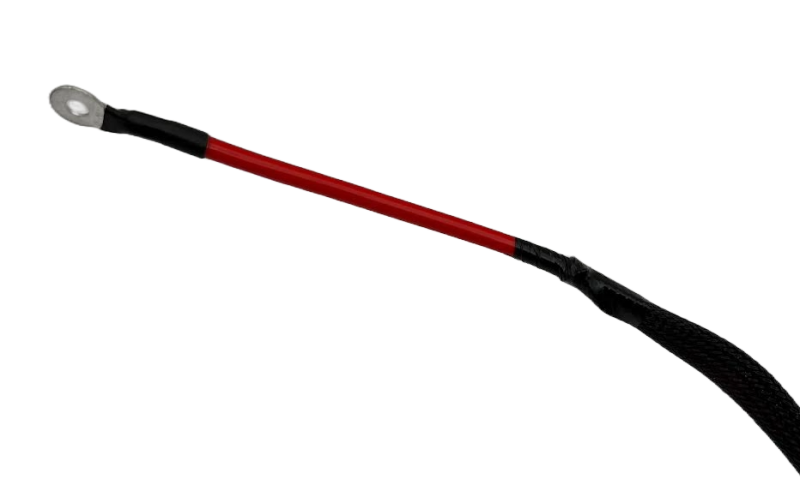

Direct‑fit engine wiring harness 4C3Z‑12B637‑AA for 2004 Ford F‑250, F‑350, F‑450, and F‑550 6.0L Powerstroke trucks. Designed for engines built on or after 09/29/2003 and equipped with a fuel heater for clean, plug‑and‑play installation.
Restore the electrical integrity of your late‑build 6.0L with this OE‑style replacement engine wiring harness, engineered as a direct substitute for Ford part number 4C3Z‑12B637‑AA. It is designed to fit 2004 Ford F‑250, F‑350, F‑450, and F‑550 trucks equipped with the 6.0L Powerstroke diesel, using engines built on or after 09/29/2003 and configured with a factory fuel heater.
As 6.0L trucks age, heat, vibration, and previous repairs can leave the original harness brittle, chafed, or corroded, leading to intermittent no‑start conditions, injector circuit codes, FICM and sensor issues, and other hard‑to‑diagnose electrical problems. This harness uses factory‑style connectors, correct wire lengths, and proper routing so it plugs directly into the original sensors, injectors, FICM/PCM connections, fuel‑heater circuit, and engine components—no cutting or splicing required. It is ideal for work trucks, tow rigs, and fleet vehicles where reliability is critical and wiring problems cost real time and money.
Direct replacement for OE engine harness part number 4C3Z‑12B637‑AA
Fits 2004 Ford F‑250, F‑350, F‑450, and F‑550 trucks with 6.0L Powerstroke diesel
Correct for engines built on or after 09/29/2003 (verify build date on door‑jamb label or engine tag)
Designed for applications equipped with a factory fuel heater circuit

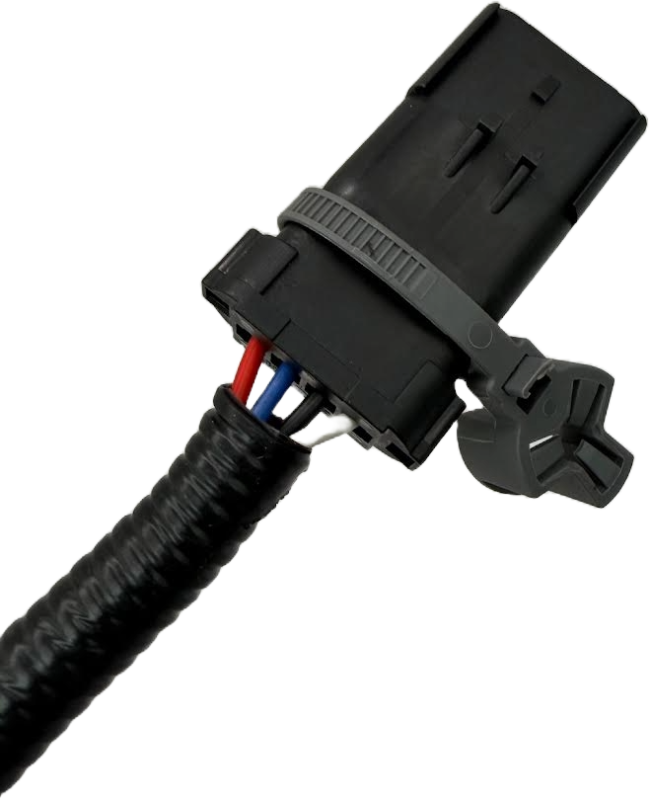

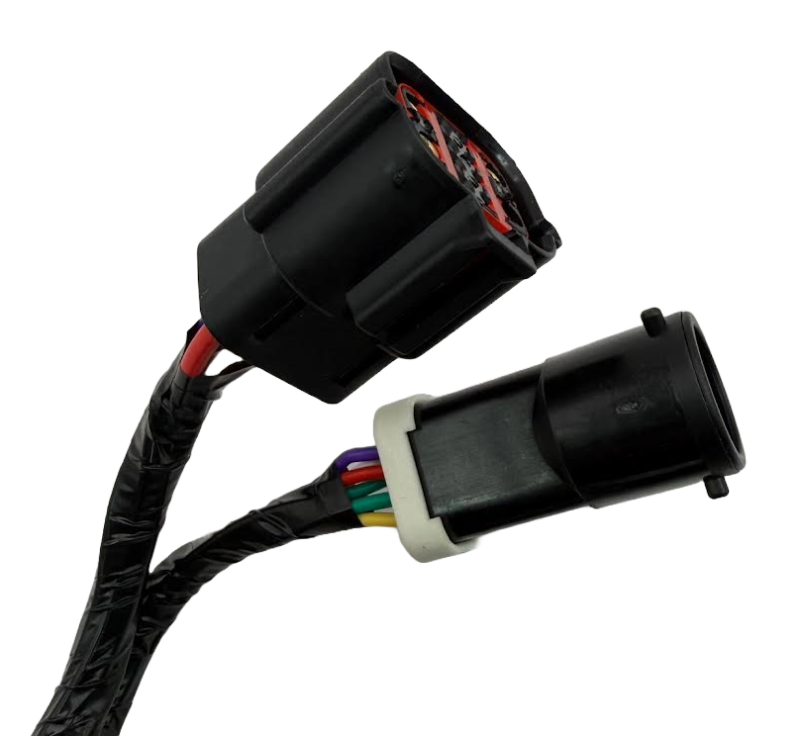

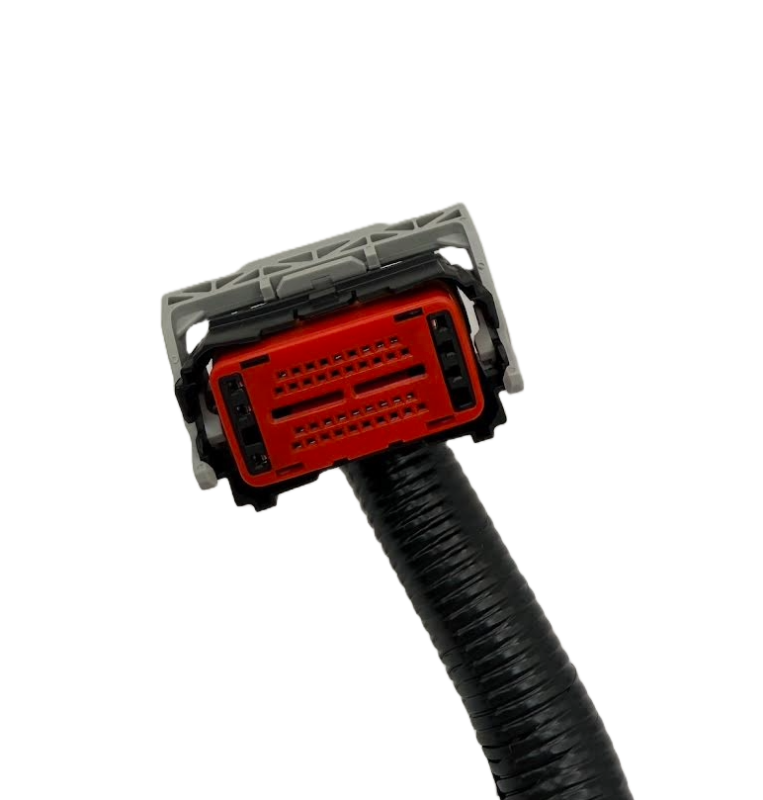

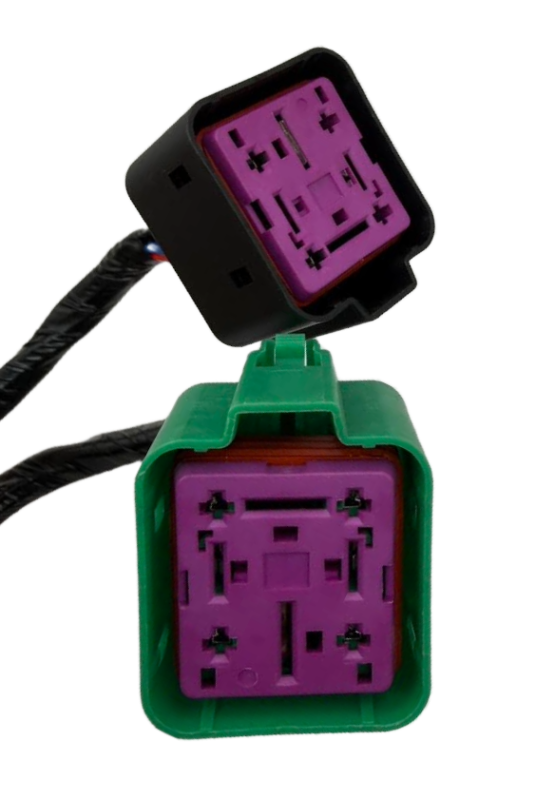

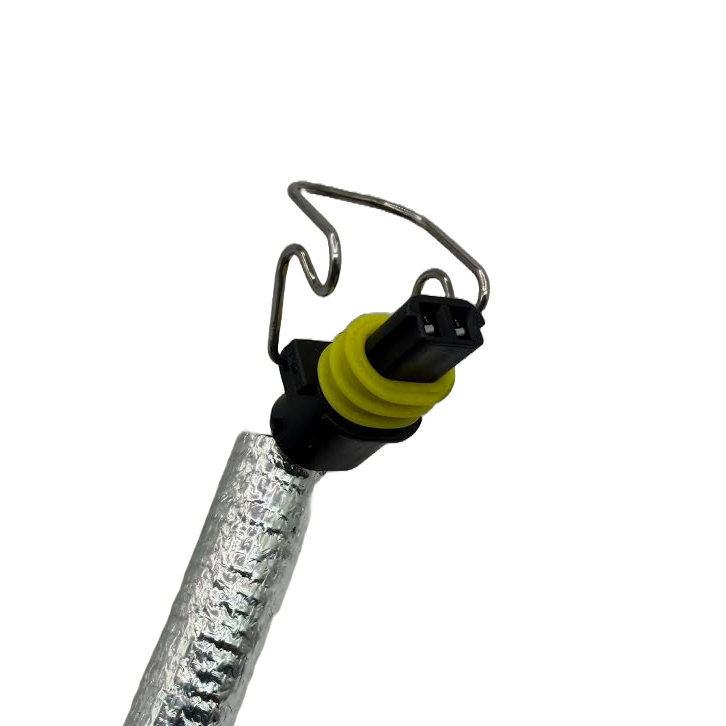

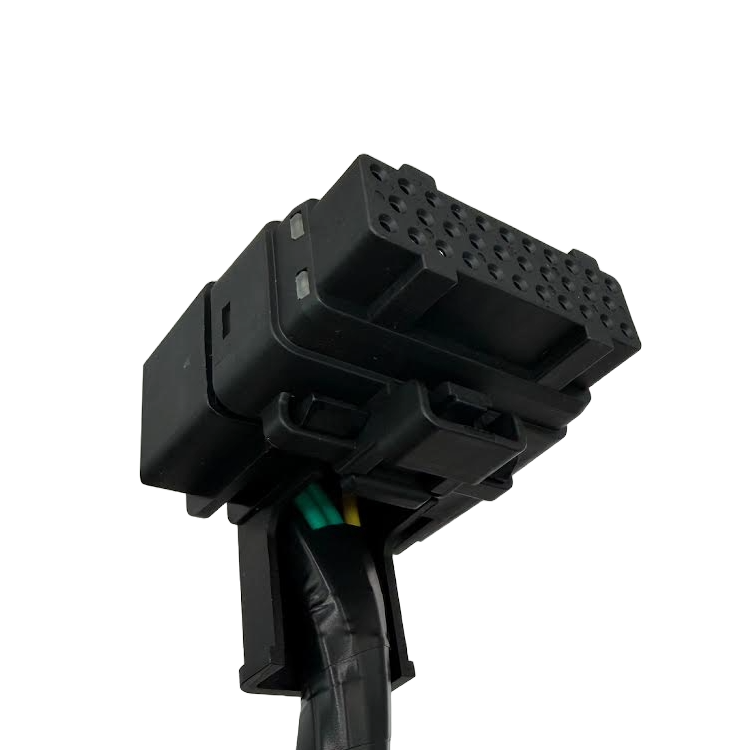

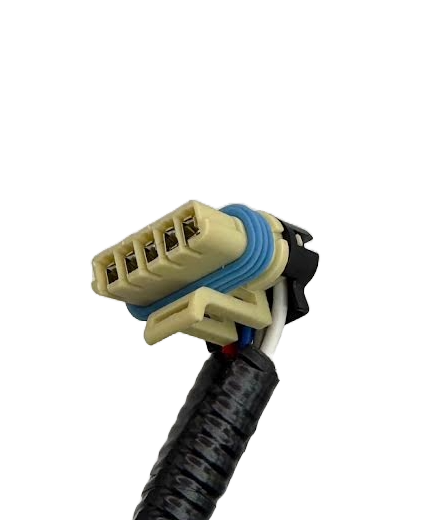

Factory‑style connectors and terminations for injectors, sensors, FICM/PCM, and fuel‑heater wiring
Proper wire gauge, lengths, and routing for clean, OE‑style installation without cutting or splicing
Helps resolve intermittent no‑start, random stalling, injector circuit codes, and other electrical issues tied to a failing original harness
On 6.0L Powerstroke trucks, the fuel heater itself lives in the Horizontal Fuel Conditioning Module (HFCM) on the frame rail, but the power and control wiring for that heater is built into the main engine harness. That’s why Ford lists separate “with fuel heater” and “without fuel heater” engine harness part numbers-one simply has an extra branch that runs down to the HFCM, and the other does not.
In practical terms, the “with fuel heater” harness includes the additional wiring leg, connector, and routing provisions needed to power the heater element at the HFCM, while the “no fuel heater” harness deletes that branch for trucks that never had the heater option. This difference in connector count and branch layout at the frame rail is what makes it important to match the harness to the truck’s original fuel‑heater configuration.
This harness can be offered with a limited 1‑year replacement warranty against defects in materials and workmanship when installed on a correct, stock‑configuration 2004 6.0L Powerstroke application that matches 4C3Z‑12B637‑AA fitment (including engine build date and fuel‑heater configuration). The warranty covers failure due to manufacturing defects under normal use and excludes damage from improper installation, modifications, accidents, abuse, or use on incorrect model years.
Brittle or cracked insulation
Age and under‑hood heat on 2004 6.0L trucks often dry out the original harness, exposing copper and causing intermittent injector or sensor faults that come and go with vibration.
Chafed or rubbed‑through wiring
Harness runs along brackets and engine hardware; over time, rubbing can wear through loom and wire jackets, creating shorts to ground or open circuits.
Corroded or loose connectors
Moisture, salt, and engine bay contaminants can corrode terminals or weaken locking tabs, leading to poor connections at injectors, FICM, sensors, and the fuel‑heater circuit.
Prior “patched” repairs
Old butt‑connectors, twisted wires, and taped splices from previous fixes often become new failure points; replacing the full harness eliminates these weak links.
Confirm build date and fuel‑heater option
Verify the truck is a 2004 model with an engine build date on or after 09/29/2003 and equipped with a factory fuel heater so it matches 4C3Z‑12B637‑AA fitment.
Disconnect both batteries
Always disconnect both batteries before unplugging the old harness to protect the PCM, FICM, and other sensitive electronics.
Document routing before removal
Take photos or label key branches of the original harness so you can mirror the factory routing, especially around the FICM, valve covers, and fuel‑heater area.
Inspect mating components
While the harness is out, inspect injector, FICM, and sensor connectors for bent pins, corrosion, or broken locks and address any issues before installing the new harness.
Secure all clips and protect from chafe
Reuse or replace harness clips and add loom/zip ties where needed so the new harness is supported, away from sharp edges, hot up‑pipes, and moving parts.
Q: What trucks does this harness fit?
A: It is intended for 2004 Ford F‑250, F‑350, F‑450, and F‑550 trucks equipped with the 6.0L Powerstroke diesel and an engine built on or after 09/29/2003.
Q: How do I know if my engine build date and configuration are correct?
A: Check the engine tag and the vehicle information label (door‑jamb sticker) for build date and confirm your truck is configured with the factory fuel heater, which this harness supports.
Q: What is different about the “with fuel heater” harness?
A: This harness includes the wiring and connectors for the factory fuel‑heater circuit used on certain 2004 6.0L applications; trucks without this option use a different harness layout.
Q: Do I need to cut or splice any wires to install it?
A: No. The 4C3Z‑12B637‑AA‑style harness is designed as an OE‑style plug‑and‑play replacement with factory‑type connectors and correct routing.
Q: What symptoms suggest my original engine harness is failing?
A: Common signs include intermittent no‑start, injector circuit codes, random stalling, FICM or sensor communication issues, or problems that change when the harness is wiggled or moved.
Q: Will this harness change performance or require tuning?
A: No tuning changes are required. The harness restores proper electrical connections and signal integrity but does not alter power levels or PCM calibration.
Q: Can I use this harness on an earlier 6.0L or a truck without a fuel heater?
A: It is not recommended; earlier build dates and non‑fuel‑heater trucks may have different harness routing and branch connectors. Always match part number, model year, build date, and fuel‑heater configuration.
