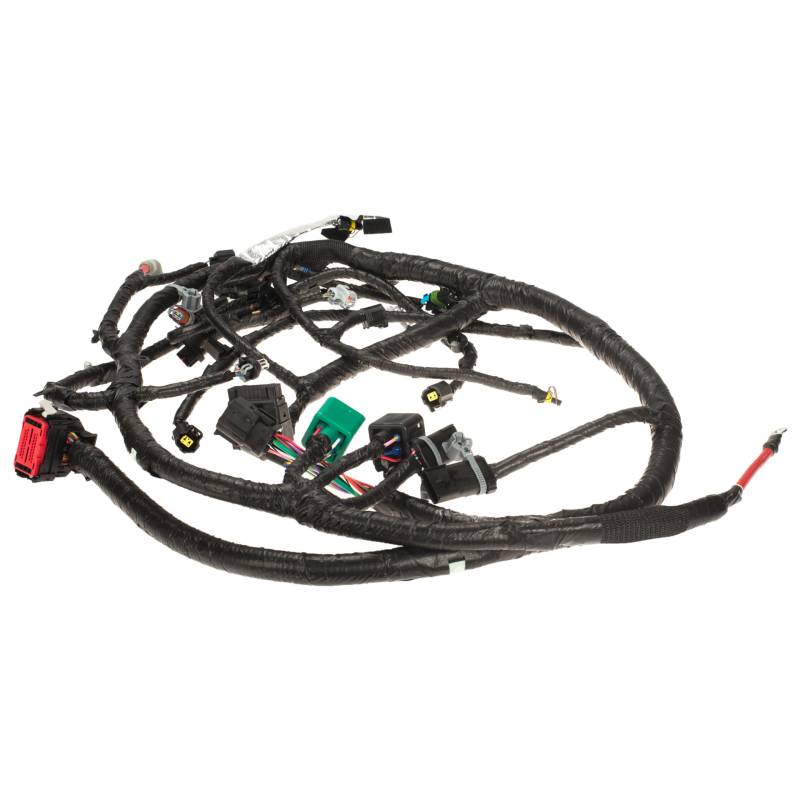

OEM‑replacement main engine wiring harness for 2004–2005 6.0L Powerstroke Excursion applications that were built without a fuel heater. Designed from the factory 4C3Z‑12B637‑CA pattern, this harness uses OEM‑style connectors, correct Excursion‑specific routing, and the late‑style ICP/EBP layout to restore reliability on high‑mileage 6.0L trucks.
This 6.0L Powerstroke main engine harness is built as a direct replacement for Ford part number 4C3Z‑12B637‑CA. It is engineered specifically for 2004–2005 Excursion 6.0L applications that do not use a fuel heater circuit, and follows the same architecture as the late‑2004 F‑Series 4C3Z‑12B637‑AA harness but deletes the fuel heater pigtail.
The harness features the late‑style ICP sensor location at the passenger‑side valve cover and the EBP sensor located at the thermostat housing on the front of the engine, matching the original 2004‑style sensor layout. All branches, clips, and push‑pin locations are laid out for Excursion‑specific routing, so it fits correctly without strain or extension on connectors.
Built with OEM‑equivalent terminals, seals, and insulation, this harness is ideal for repairing melted, oil‑soaked, or rodent‑damaged factory harnesses without resorting to used junkyard parts. Correct fitment dramatically reduces intermittent FICM, injector, ICP, and EBP‑related codes caused by chafed or corroded wiring.
Direct replacement for OE engine harness part number 4C3Z‑12B637‑CA
Fits 2004-2005 Ford Excursion trucks W/O Fuel Heater with 6.0L Powerstroke diesel
Correct for engines built on or after 09/29/2003 (verify build date on door‑jamb label or engine tag)
Designed for applications equipped WITHOUT a factory fuel heater circuit

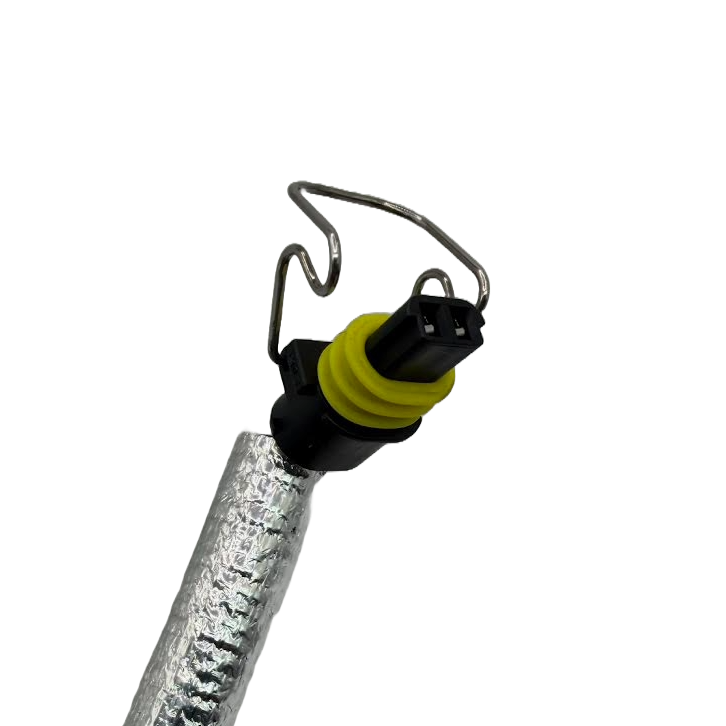

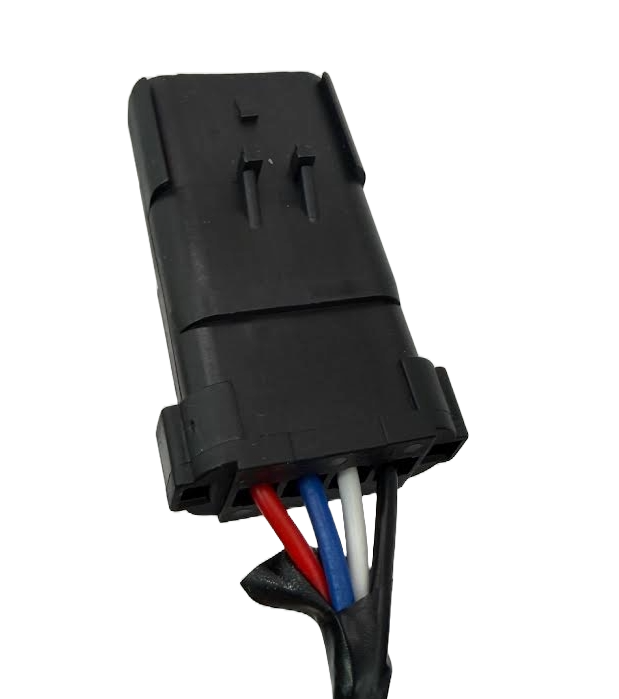

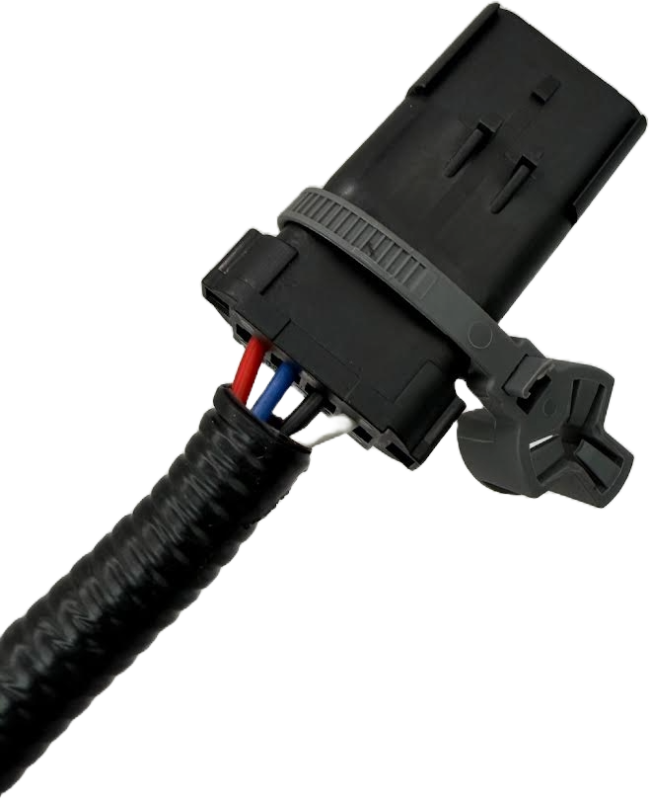

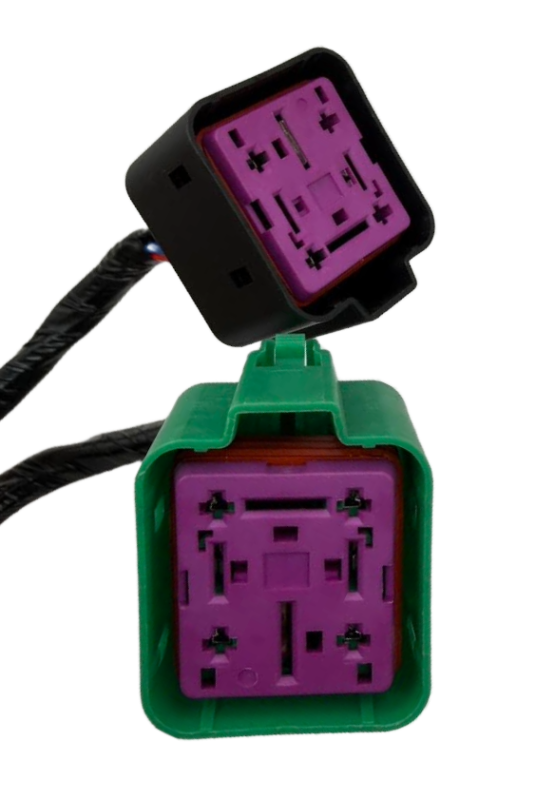

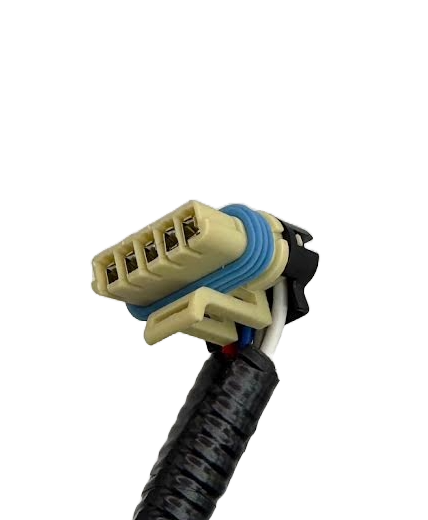

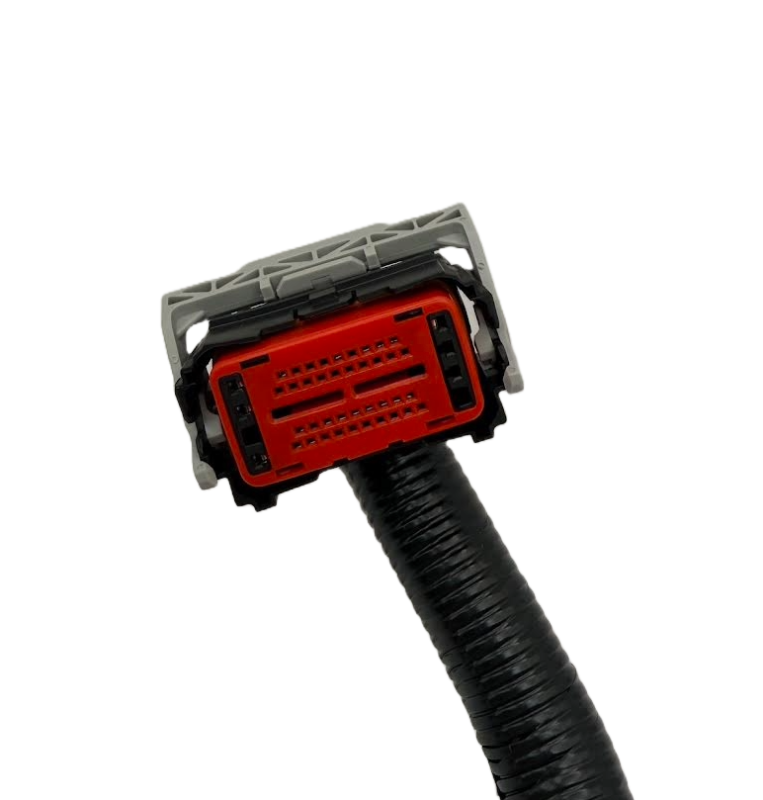

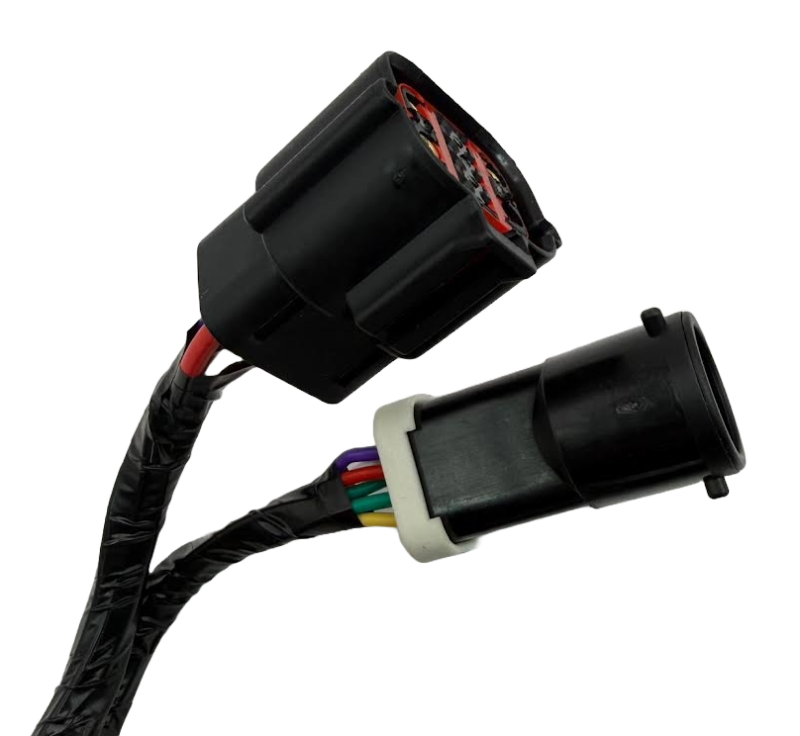

Factory‑style connectors and terminations for injectors, sensors, FICM/PCM, and fuel‑heater wiring
Proper wire gauge, lengths, and routing for clean, OE‑style installation without cutting or splicing
Helps resolve intermittent no‑start, random stalling, injector circuit codes, and other electrical issues tied to a failing original harness
On 6.0L Powerstroke trucks, the fuel heater itself lives in the Horizontal Fuel Conditioning Module (HFCM) on the frame rail, but the power and control wiring for that heater is built into the main engine harness. That’s why Ford lists separate “with fuel heater” and “without fuel heater” engine harness part numbers-one simply has an extra branch that runs down to the HFCM, and the other does not.
In practical terms, the “with fuel heater” harness includes the additional wiring leg, connector, and routing provisions needed to power the heater element at the HFCM, while the “without fuel heater” harness deletes that branch for trucks that never had the heater option. This difference in connector count and branch layout at the frame rail is what makes it important to match the harness to the truck’s original fuel‑heater configuration.
This harness can be offered with a limited 1‑year replacement warranty against defects in materials and workmanship when installed on a correct, stock‑configuration 2004-2005 6.0L Powerstroke Excursion application that matches 4C3Z‑12B637‑CA fitment (including engine build date and fuel‑heater configuration). The warranty covers failure due to manufacturing defects under normal use and excludes damage from improper installation, modifications, accidents, abuse, or use on incorrect model years.
Brittle or cracked insulation
Age and under‑hood heat on 2004-2005 Excursion 6.0L trucks often dry out the original harness, exposing copper and causing intermittent injector or sensor faults that come and go with vibration.
Chafed or rubbed‑through wiring
Harness runs along brackets and engine hardware; over time, rubbing can wear through loom and wire jackets, creating shorts to ground or open circuits.
Corroded or loose connectors
Moisture, salt, and engine bay contaminants can corrode terminals or weaken locking tabs, leading to poor connections at injectors, FICM, sensors, and the fuel‑heater circuit.
Prior “patched” repairs
Old butt‑connectors, twisted wires, and taped splices from previous fixes often become new failure points; replacing the full harness eliminates these weak links.
Confirm build date and fuel‑heater option
Verify the truck is a 2004-2005 model with an engine build date on or after 09/29/2003 and equipped without a factory fuel heater so it matches 4C3Z‑12B637‑CA fitment.
Disconnect both batteries
Always disconnect both batteries before unplugging the old harness to protect the PCM, FICM, and other sensitive electronics.
Document routing before removal
Take photos or label key branches of the original harness so you can mirror the factory routing, especially around the FICM, valve covers, and fuel‑heater area.
Inspect mating components
While the harness is out, inspect injector, FICM, and sensor connectors for bent pins, corrosion, or broken locks and address any issues before installing the new harness.
Secure all clips and protect from chafe
Reuse or replace harness clips and add loom/zip ties where needed so the new harness is supported, away from sharp edges, hot up‑pipes, and moving parts.
Q: What trucks does this harness fit?
A: It is intended for 2004-2005 Ford Excursion trucks equipped with the 6.0L Powerstroke diesel and an engine built on or after 09/29/2003.
Q: How do I know if my engine build date and configuration are correct?
A: Check the engine tag and the vehicle information label (door‑jamb sticker) for build date and confirm your truck is configured without the factory fuel heater, which this harness supports.
Q: What is different about the “with fuel heater” harness?
A: This harness DOES NOT include the wiring and connectors for the factory fuel‑heater circuit used on certain 2004-2005 Excursion 6.0L applications; trucks with this option use a different harness layout.
Q: Do I need to cut or splice any wires to install it?
A: No. The 4C3Z‑12B637‑CA‑style harness is designed as an OE‑style plug‑and‑play replacement with factory‑type connectors and correct routing.
Q: What symptoms suggest my original engine harness is failing?
A: Common signs include intermittent no‑start, injector circuit codes, random stalling, FICM or sensor communication issues, or problems that change when the harness is wiggled or moved.
Q: Will this harness change performance or require tuning?
A: No tuning changes are required. The harness restores proper electrical connections and signal integrity but does not alter power levels or PCM calibration.
Q: Can I use this harness on an earlier 6.0L or a truck with a fuel heater?
A: It is not recommended; earlier build dates and non‑fuel‑heater trucks may have different harness routing and branch connectors. Always match part number, model year, build date, and fuel‑heater configuration.
