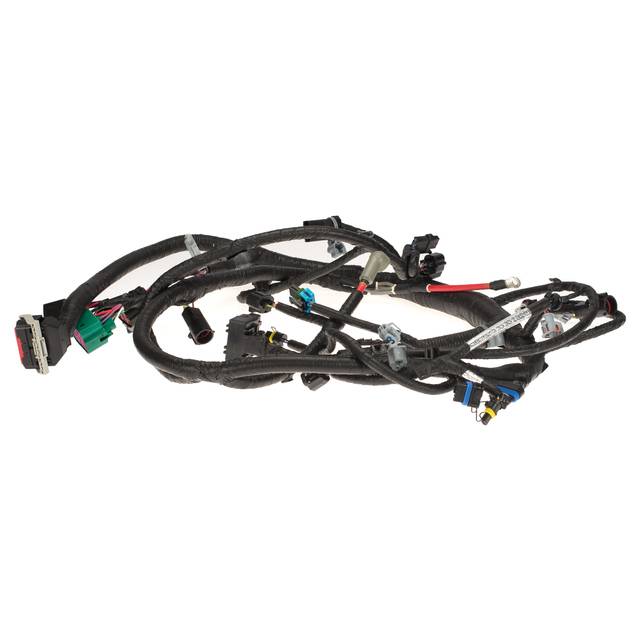

2003–2004 Ford 6.0L Powerstroke Engine Harness 3C3Z‑12B637‑BA

Refresh the electrical backbone of your 6.0L with this OE‑style replacement engine wiring harness engineered as a direct substitute for Ford part number 3C3Z‑12B637‑BA. It is designed to fit 2003–2004 Ford F‑250, F‑350, F‑450, and F‑550 trucks equipped with the 6.0L Powerstroke diesel, starting with build dates of 01/30/2003 and later, ensuring the correct connector layout and routing for this updated 6.0L configuration.​

Years of heat, vibration, and previous repairs can leave the original harness with cracked insulation, chafed sections, and corroded terminals that lead to intermittent no‑start conditions, injector and FICM issues, and hard‑to‑trace electrical faults. This harness uses factory‑style connectors, correct wire lengths, and proper routing so it plugs directly into the original sensors, injectors, FICM/PCM connections, and engine components without any cutting or splicing. It is ideal for restoring reliability on work trucks, fleet vehicles, or any 6.0L build where electrical integrity is just as important as mechanical health.​

Key features & benefits

• Direct replacement for OE engine harness part number 3C3Z‑12B637‑BA

• Fits 2003–2004 Ford F‑250, F‑350, F‑450, and F‑550 with 6.0L Powerstroke diesel

• Correct for trucks built on or after 01/30/2003 (verify build date on the door jamb label)

• Factory‑style connectors and terminations for sensors, injectors, FICM, and engine components

• Proper wire gauge, lengths, and routing for a clean, OE‑style installation

• Helps resolve no‑start, injector circuit codes, random stalling, and other wiring‑related electrical issues tied to a failing original harness​

Warranty statement

This harness can be sold with a limited 1‑year replacement warranty against defects in materials and workmanship when installed on a correct, stock‑configuration 2003–2004 6.0L Powerstroke application matching 3C3Z‑12B637‑BA fitment and build‑date range. The warranty would cover failure due to manufacturing defects under normal use, and exclude damage from improper installation, modifications, accidents, abuse, or use on incorrect model years or build dates.

Common failures this harness helps fix

• Brittle or cracked insulation

  • Age and heat can dry out the original 6.0L harness, causing exposed copper and intermittent shorts that trigger injector or sensor codes.​

• Chafed or rubbed-through sections

  • Harness runs along brackets and engine hardware; vibration can rub through the loom and wires, leading to hard‑to‑trace no‑start or rough‑run issues.​

• Corroded or loose connectors

  • Moisture and engine bay contaminants can corrode terminals or loosen connector locks, causing intermittent injector firing, FICM communication issues, and random stalling.​

• Previous “repair” splices

  • Old butt‑connectors or taped‑up splices from earlier fixes often become new failure points; a new harness eliminates these weak links.​

Installation tips

• Verify build date first

  • Confirm the truck is built on or after 01/30/2003 (door‑jamb label) and uses the 3C3Z‑12B637‑BA style harness before starting the job.​

• Disconnect batteries

  • Always disconnect both batteries to protect the PCM, FICM, and other electronics before unplugging the old harness.

• Label as you go

  • Even though the replacement is designed as plug‑and‑play, labeling or taking photos of the old harness routing makes reassembly faster and cleaner.

• Inspect connectors closely

  • Check mating connectors (FICM, injectors, sensors) for bent pins, corrosion, or broken locks and address any issues before plugging in the new harness.

• Secure with all clips and ties

  • Reuse or replace loom clips and zip ties so the harness is supported and not rubbing on sharp edges or hot components.

FAQ – 3C3Z‑12B637‑BA 6.0L engine harness

Q: What trucks does this harness fit?
A: It is intended for 2003–2004 Ford F‑250, F‑350, F‑450, and F‑550 trucks equipped with the 6.0L Powerstroke diesel and built on or after 01/30/2003.​

Q: How do I confirm my build date?
A: Check the manufacture date on the driver‑side door‑jamb sticker; this harness is correct only for trucks with a build date of 01/30/2003 or later.​

Q: Does this change performance or require tuning?
A: No. It is an OE‑style replacement meant to restore proper electrical function, not alter power levels or calibration, so no tuning changes are needed.

Q: What symptoms suggest my engine harness is bad?
A: Common signs include intermittent no‑start, random stalling, injector circuit codes, FICM communication errors, or issues that change when you wiggle parts of the harness.

Q: Do I need to cut or splice any wires?
A: No. The harness is pre‑terminated with factory‑style connectors and correct routing so it installs as a direct plug‑in replacement for the original 3C3Z‑12B637‑BA harness.​

Q: Can I use this on an earlier 2003 6.0L built before 01/30/2003?
A: It is not recommended; early‑build 6.0L trucks can have different harness and connector layouts. Always match the harness to the correct part number and build date range.
