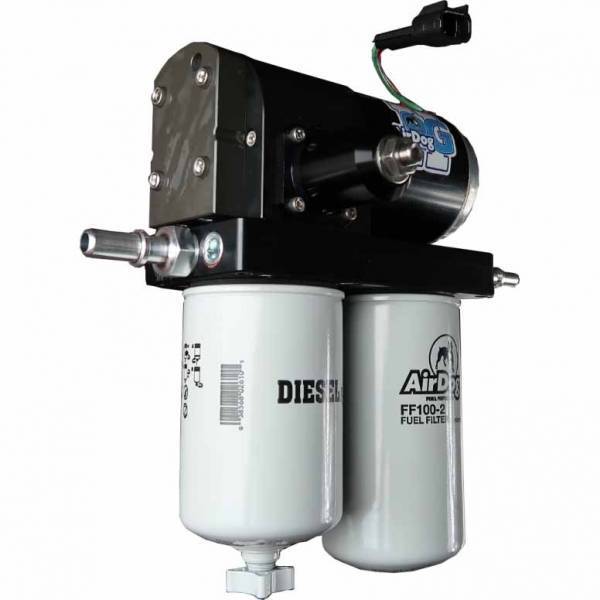

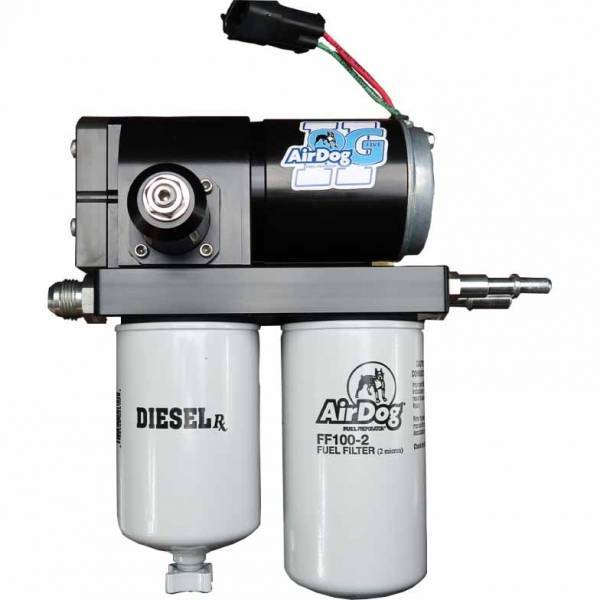

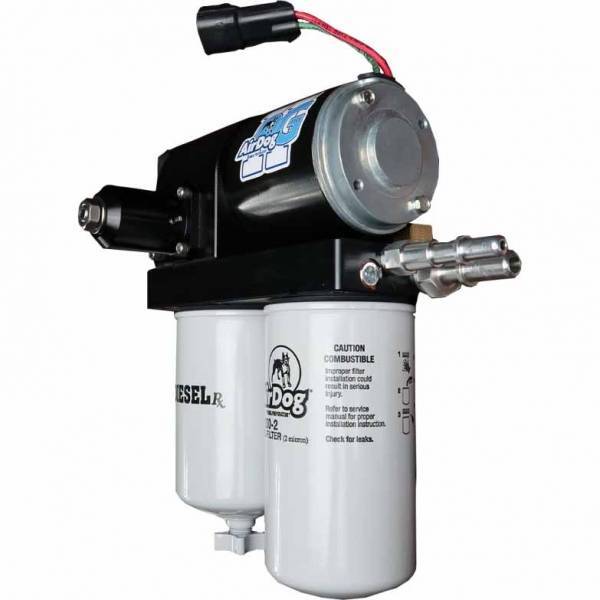

Build your 1989-1993 Dodge/Ram 5.9L Cummins fuel-supply setup around the AirDog II-5G DF-100-5G. This 100 GPH AirDog fuel system combines an application-specific lift-pump installation with an air/vapor return circuit.
Key details
- Manufacturer part number: A7SPBD338
- Series: AirDog II-5G
- Model: DF-100-5G
- Nominal flow rating: 100 GPH
- Fuel type: Diesel
- Application: 1989-1993 Dodge/Ram 5.9L Cummins
- Engine family: Cummins
- Valvetrain: 12V

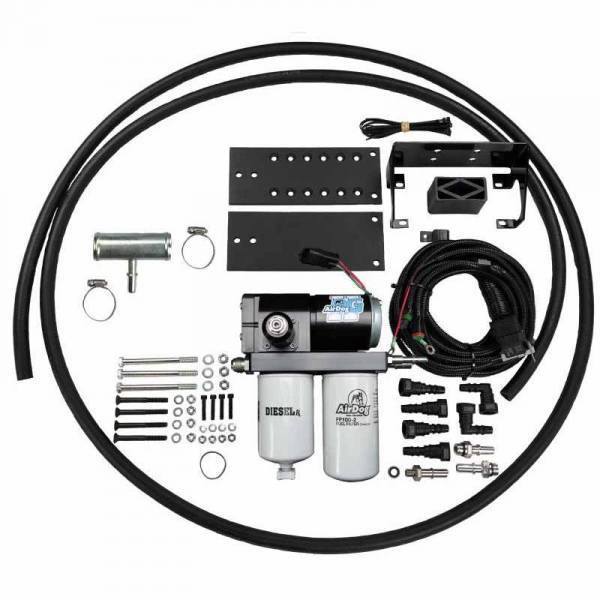

- Sold as: Kit
- Country of origin: US
Fitment and ordering notes
- Application range: 1989-1993 Dodge/Ram 5.9L Cummins. Confirm the engine and existing fuel-system configuration before ordering.
Installation overview
- Mounts to the frame rail using the supplied sandwich plate mounting system.
- The suction side hooks up to the factory suction fitting in the fuel module.
- The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing and factory, block mounted, fuel pump.
- The AirDog Air/Vapor return is sent back to the tank through a filler neck tee.
Tech tips
- Choose flow capacity around the complete fuel system and intended use; a GPH rating is not a guaranteed horsepower or fuel-economy gain.
- Use the exact kit's installation instructions for hose routing, electrical connections, priming, leak checks and operating-pressure verification.
- Confirm tank, pickup and filtration modifications before scheduling installation. The overview above does not replace the installation manual.
Installation resources and warranty
Use the exact part number to locate the applicable instructions in the AirDog resource library. Confirm warranty terms for this model and complete the manufacturer registration as required.
