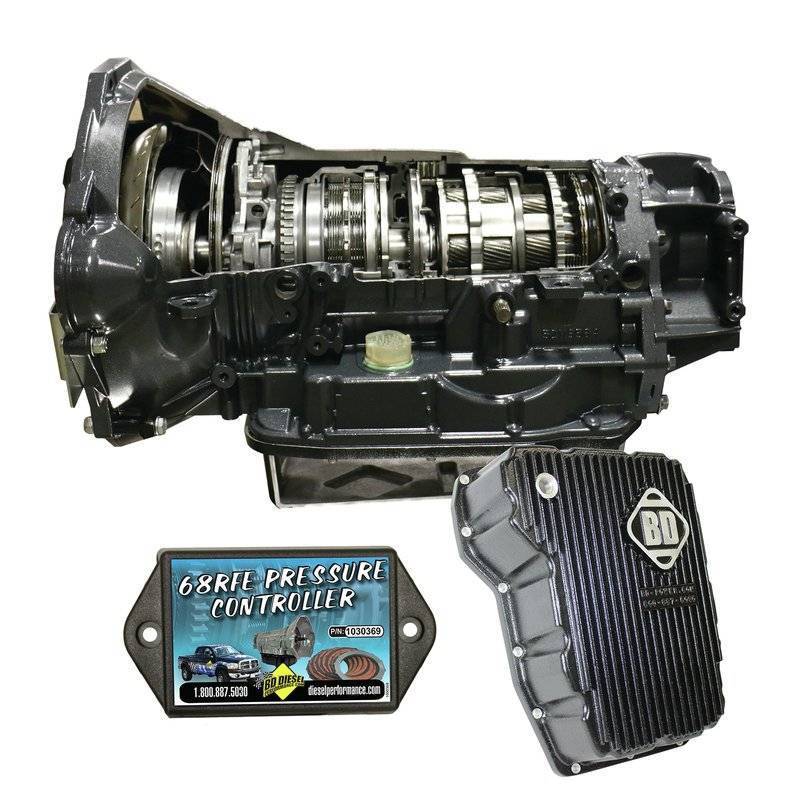

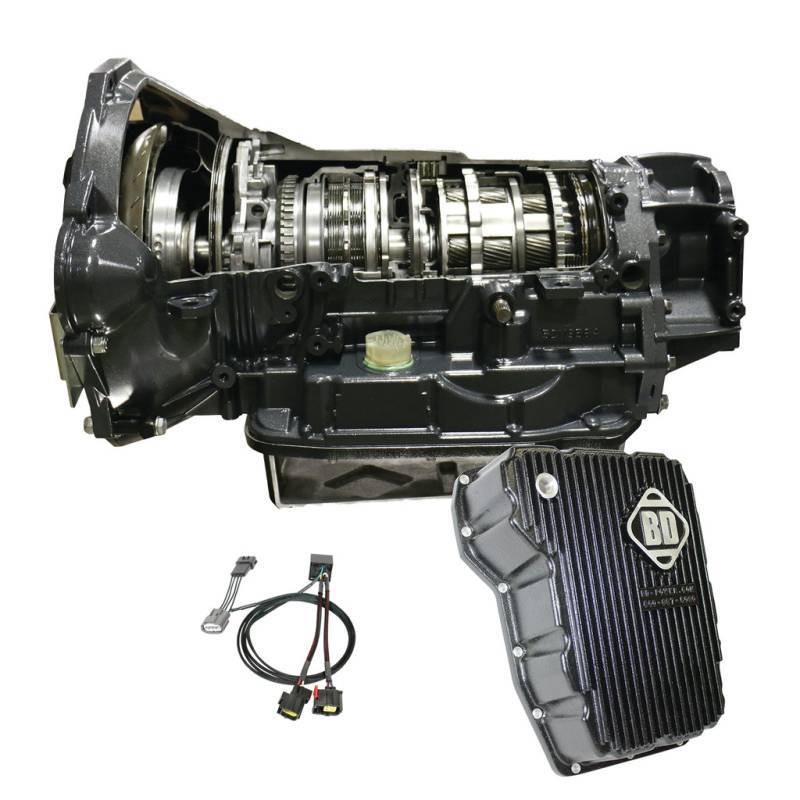

BD Diesel 68RFE Transmission for 2007.5–2017 Dodge/RAM 2WD Trucks

SKU: 1064262

BD's 68RFE industry-leading exclusive custom valve body separator plate gaskets substantially reduce cross leaks compared to stock and other applications, even with much higher line pressures. Hard-anodized valve body and new solenoid pack installed in every unit. The Electronic Pressure Controller dynamically adjusts the hydraulic apply pressures based on turbo boost/engine load. The module's dynamic control ramps up the much larger sweep right up to 250 PSI mainline pressure as needed, dependent on engine load, which creates turbocharger boost dynamically. This is not accomplished with any other aftermarket engine tuner. All the clutch packs and drums have new machined designs with the maximum amount of heat/energy capacity in mind. A steel girdle added to the 2C piston and durable QT100 pressure plates allow for increased clutch counts. The 4th gear apply piston has been modified to accept a new, heavier Billet retainer. The Low and Reverse sprag clutch with dog-bone style dawgs that bind and wedge themselves to destruction are replaced with a new BD exclusive, heavy-duty constructed cam and roller style one-way clutch, preventing these explosive failures. These hold higher torque levels, with reduced deflection and distortion within the clutch drum. BD deep sump oil pan adds extra fluid and cooling capacity, while reducing case flex.

Features

• Hard-anodized valve body and new solenoid pack installed in every unit
• Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks
• Heavy-duty cam & roller design, low reverse one-way clutch
• New 4C billet spring retainer
• A steel girdle was added to the 2C piston to allow for more clutches and a broader application area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• TCC limit valve machined and sleeved to address the high wear area with in pump
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• BD ProTech68 pressure control module ramps up line pressure to 250 psi using the MAP sensor to input load and adjust the pressure required

Warranty

• 36-Months
• 150,000 Miles
• 12-Months
• 24,000 miles
• No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
