BD DIESEL'S 6.7 Ford Scorpion turbo kit is that step above the rest when it comes to power and performance.
Improved turbo design in conjunction with better airflow and more reliable components ensure you will be pulling away from your competitors in no time
FROM BD DIESEL:

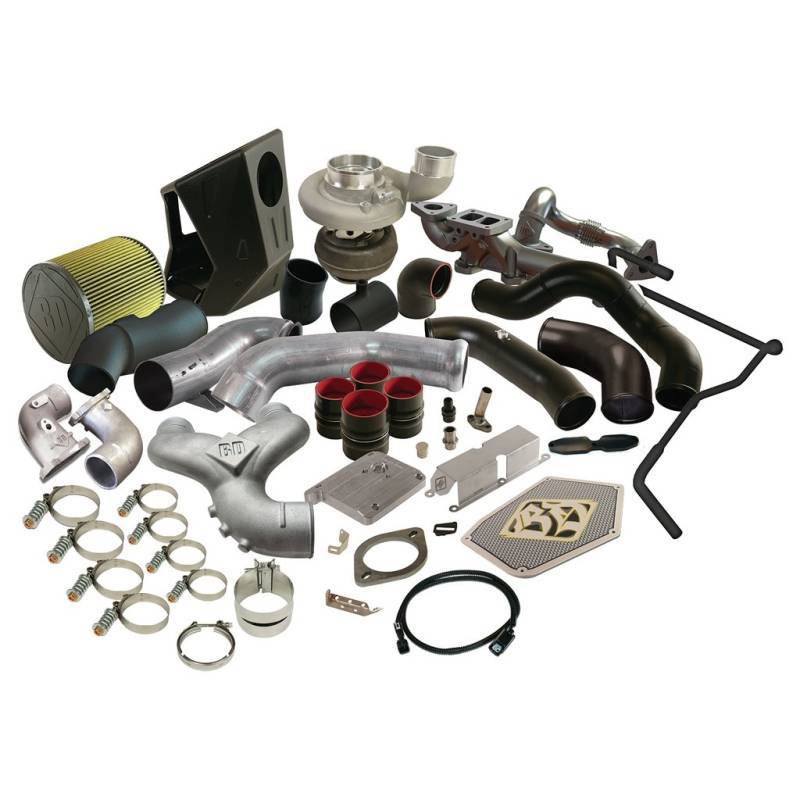

FEATURES-
- Borg Warner S369SX-E series turbocharger with FMW
- Larger turbochargers available for even higher horsepower
- Race tune required (not included)
- 1.00 AR Ratio
- BD 90-deg compressor cover with 3in outlet
- BD high performance T4 flanged exhaust manifold, stainless heatshield and crossover tube
- BD billet aluminum pedestal block with oil drain and feed. Includes 1/8 NPT water feed port if using water cooled waste gate (Or CHRA).
- BD high strength A356 aluminum intake horns
- BD high strength A356 Y-Intake with meth, NOS and boost pressure sensor bosses
- BD custom 4in cold air intake with 8in OD high-flow velocity stacked filter
- BD complete high flow aluminized 4in downpipe that mates to stock flange position for easy install to stock or aftermarket exhaust systems
- BD cold air charge tubes, 3.5in intercooler to intake tubes with pressure sensor provision
- Stainless heat shield keeps heat in and intake temperatures down
- Incorporated dual 1/8 NPT EGT ports as well as the provision to use a factory EGT sensor
- BD Boot Lock ready with boss positions on intake and outlets
- Compatible with stock or aftermarket water-to-air intercooler
Warranty
Parts
- 12-Months
- 12,000 Miles
- 12-Months
- 12,000 Miles
Note
- Wheel burst resulting from over speeding is not warrantable
Note
- A/R Ratios are suited for non-wastegated applications. External wastegate fitted to exhaust manifold optional.
- Not for sale on licensed California vehicles
- Requires tuner with special programming due to VGT removal: EZ Lynk tuned by PPEI, or SCT (custom tuned)
- 2015-up model years require 1045805 application kit
