The Edge Insight CTS4 is a digital gauge and diagnostic tool kit only. It does not program or tune your truck.
Monitor only: the 84130-4 Insight CTS4 adds no performance tune and, per Edge, does not affect vehicle emissions.

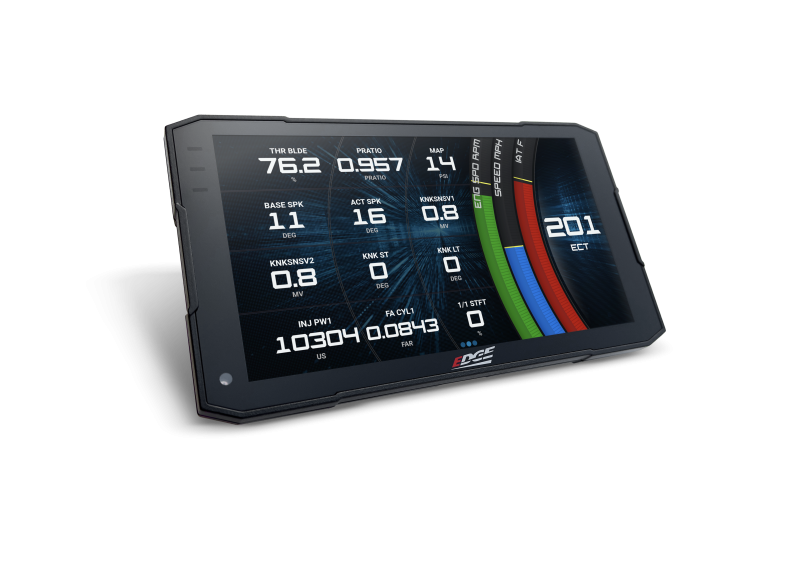

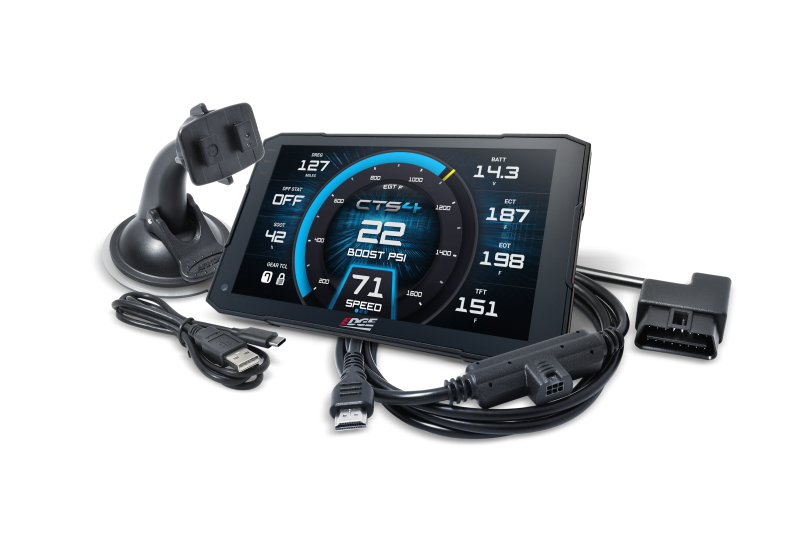

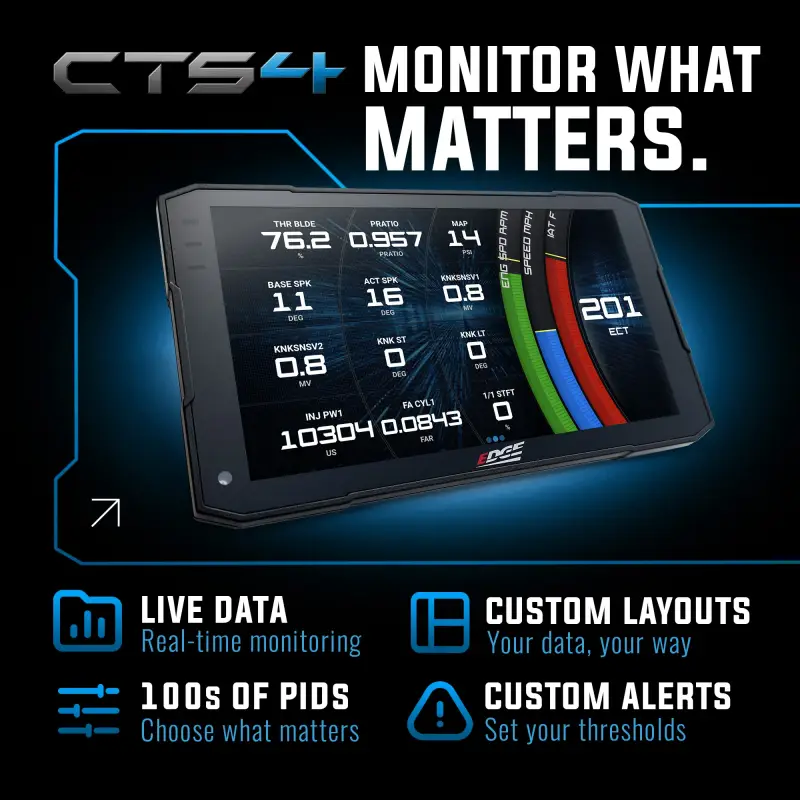

It plugs into the OBD-II port and shows supported engine, drivetrain, temperature and pressure data the factory dash doesn't, with custom layouts, alerts, data logging and trouble-code support.
Key Features
- 1.7 GHz dual-core 64-bit processor, 3.4x the processing power of CTS3
- 2 GB of RAM (300% more memory than CTS3)
- 70% faster cold boot and 50% less setup time
- 5.5" high-resolution capacitive touchscreen with 21% more viewing area than the 5" CTS3, 60 FPS

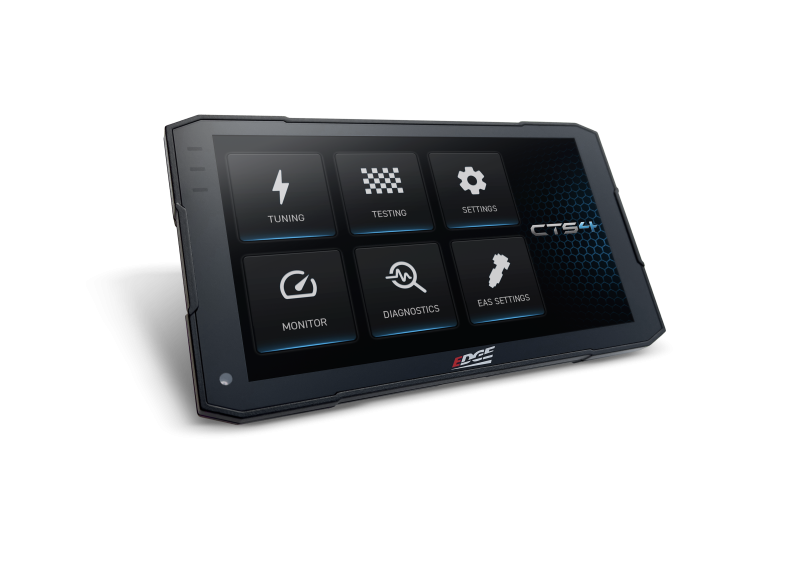

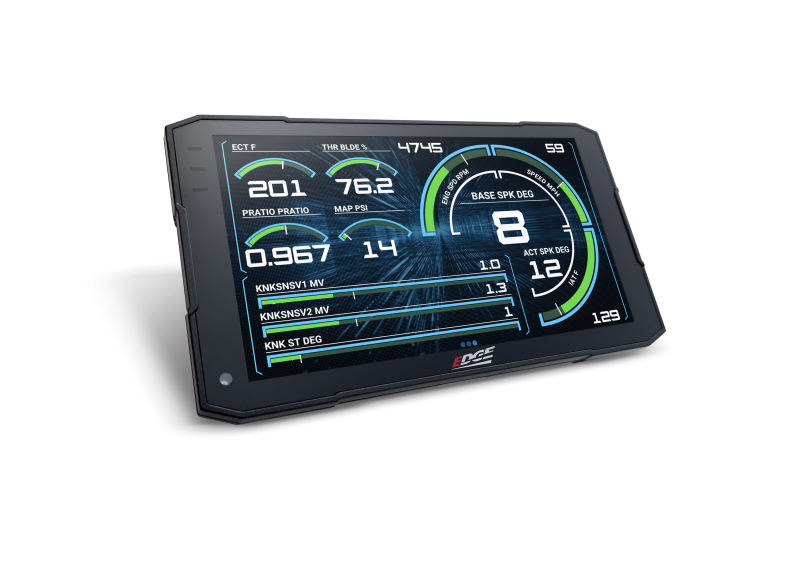

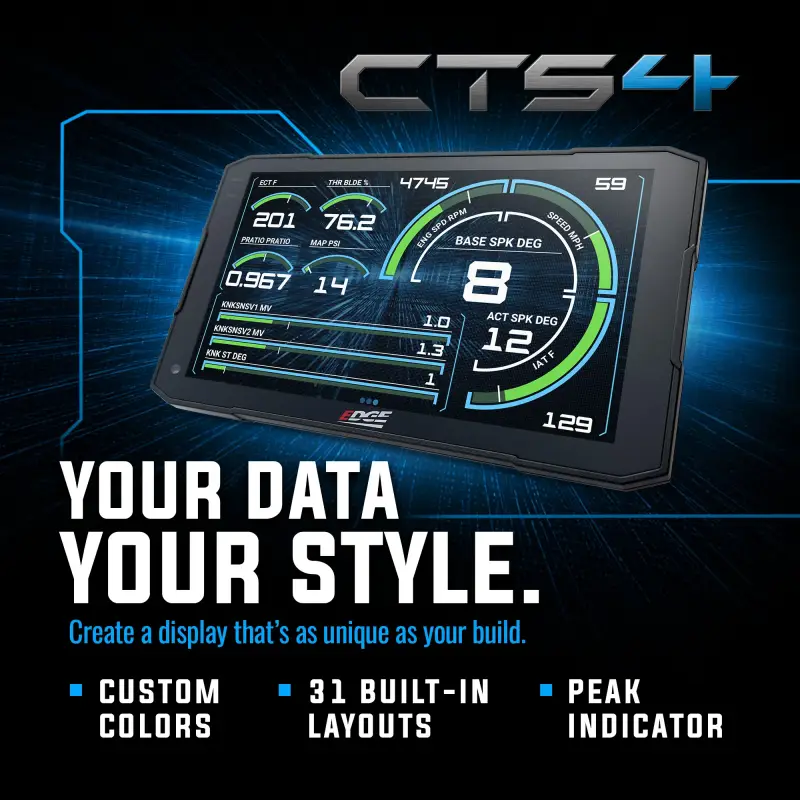

- Customizable layouts and gauges, configurable alerts, data logging and DTC read/clear

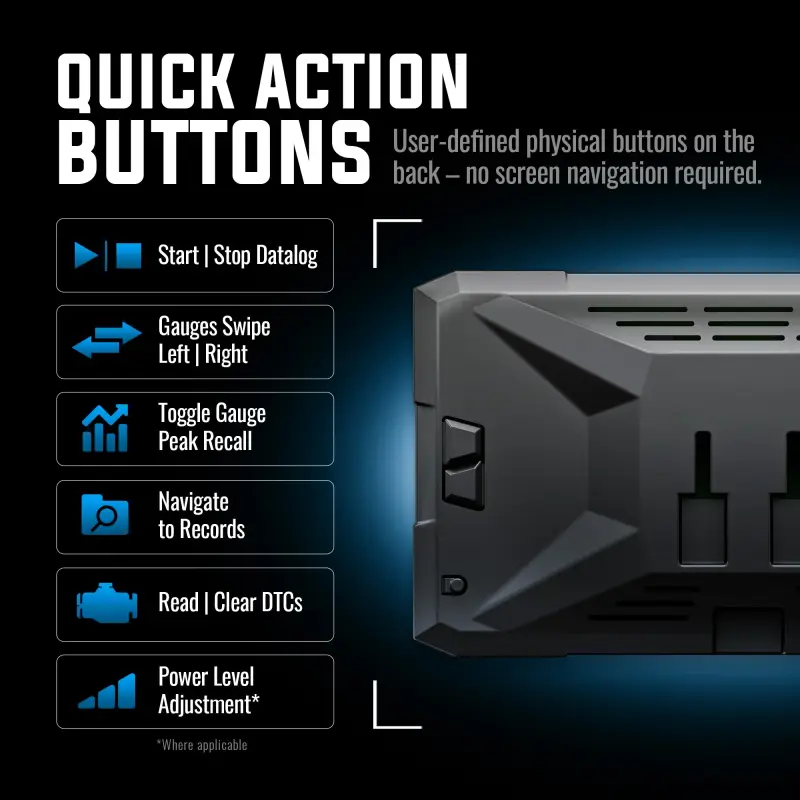

- Maintenance Minder, programmable Quick Action buttons, peak recall, LED indicator lights and Wi-Fi updates

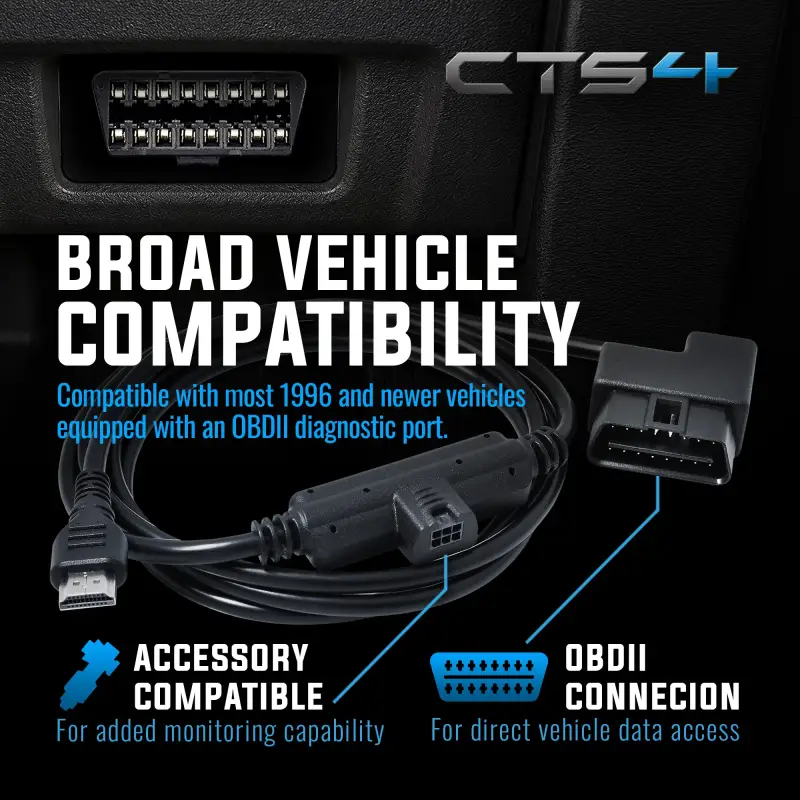

- Plugs into the OBD-II port; supports Edge EAS sensors (EGT, pressure, temperature) and an RCA backup camera input
- 50% faster PID changes for quicker gauge updates
- Monitor without tuning; upgradeable to Evolution CTS4 or Insight+ CTS4 through an internet update

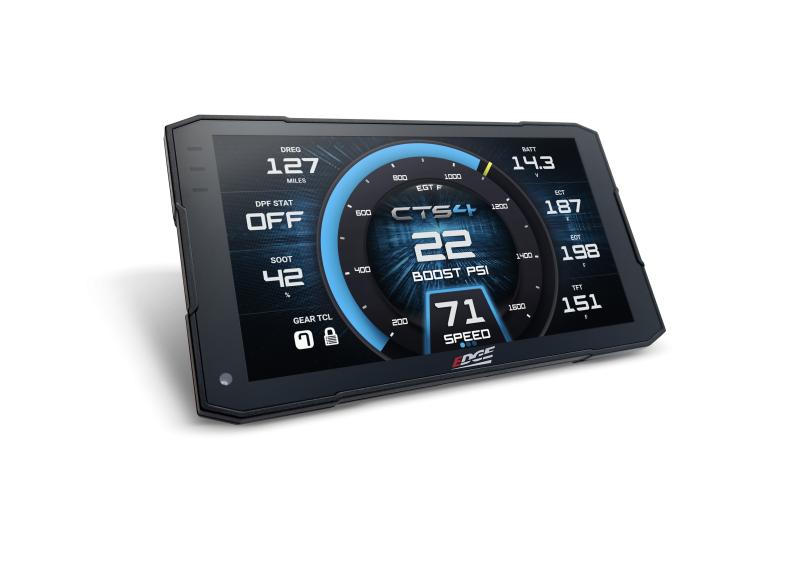

- Track DPF load, soot accumulation and regen status on supported trucks
Specifications
- Part number: 84130-4
- Tuning: None (monitor only)
- Processor: 1.7 GHz dual-core 64-bit
- Memory: 2 GB LPDDR4 (3400 MHz)
- Display: 5.5" capacitive color touchscreen, 60 FPS, auto-dimming
- Connection: OBD-II
- Data logging / 5V logging inputs: Yes / Yes
- Check & clear DTCs: Yes
- EAS accessory compatible: Yes
- Video (backup camera) capable: Yes
- Wi-Fi updates: Yes
- Manual: CTS4 Manual D10035400_Rev00 (Edge Tech Resources)
- UPC: 850058611815
Fitment
- 84130-4: Ford, GM, Ram diesel and gas | 1996-and-newer domestic trucks with OBD-II ("virtually any," per Edge)
Per Edge, available parameters and features vary by vehicle application.

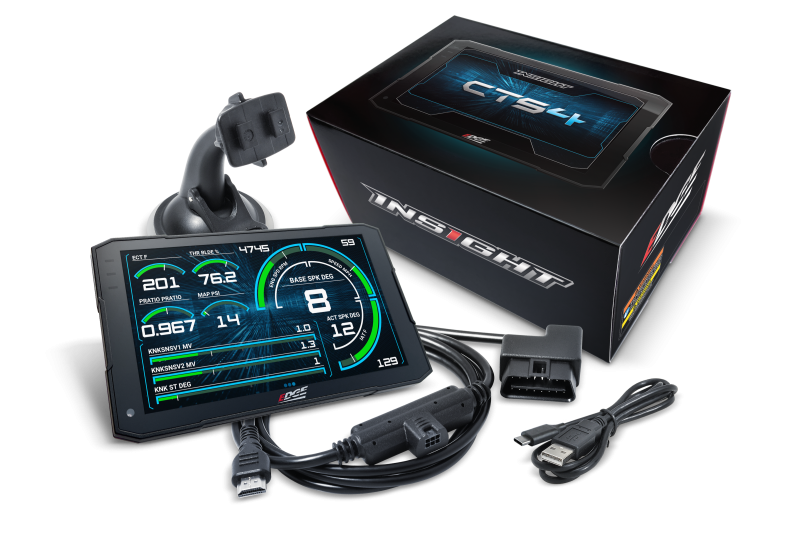

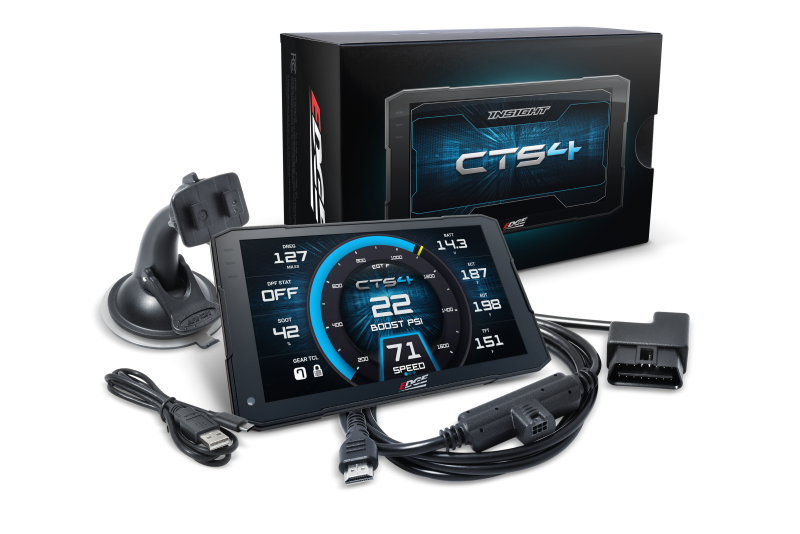

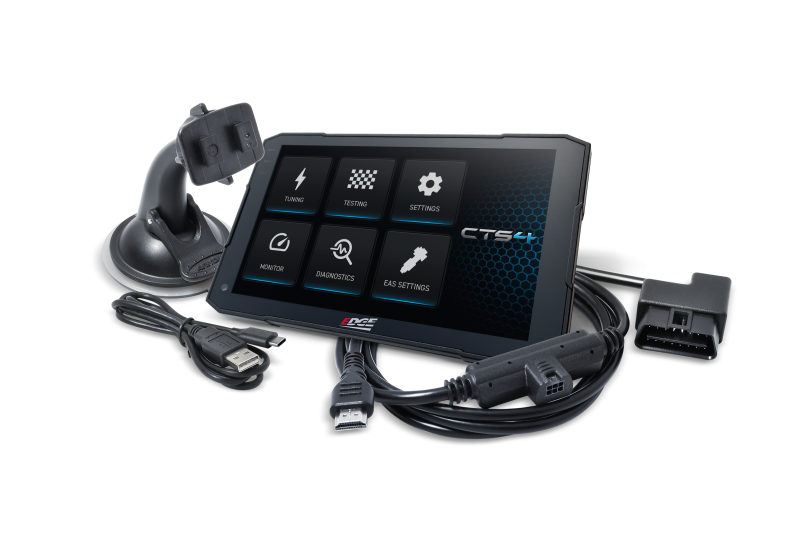

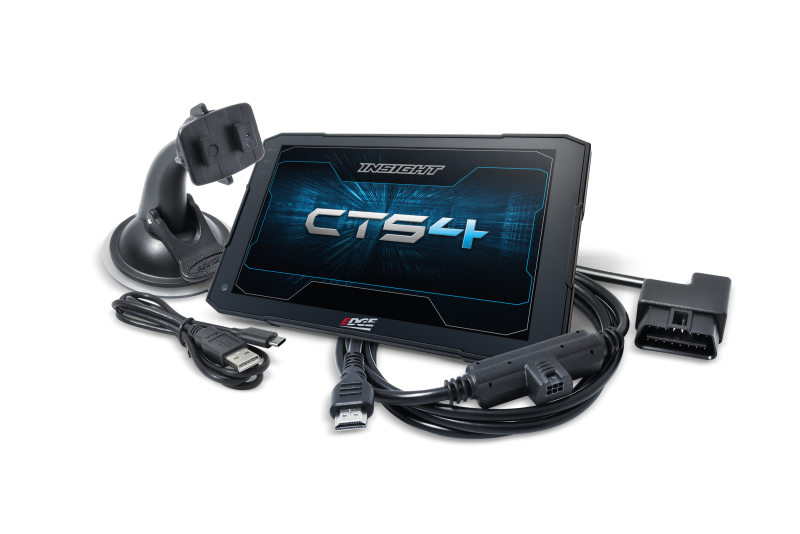

What's in the Box
FAQ
Does the Insight CTS4 tune my truck?
No. It is a monitor only. To add tuning later, upgrade to Evolution CTS4 or Insight+ CTS4 through an internet update.
What can I monitor?
Supported engine, drivetrain, temperature and pressure data such as EGT, fluid temps, rail pressure, DPF load and regen status. Coverage varies by truck.
Can I add a backup camera?

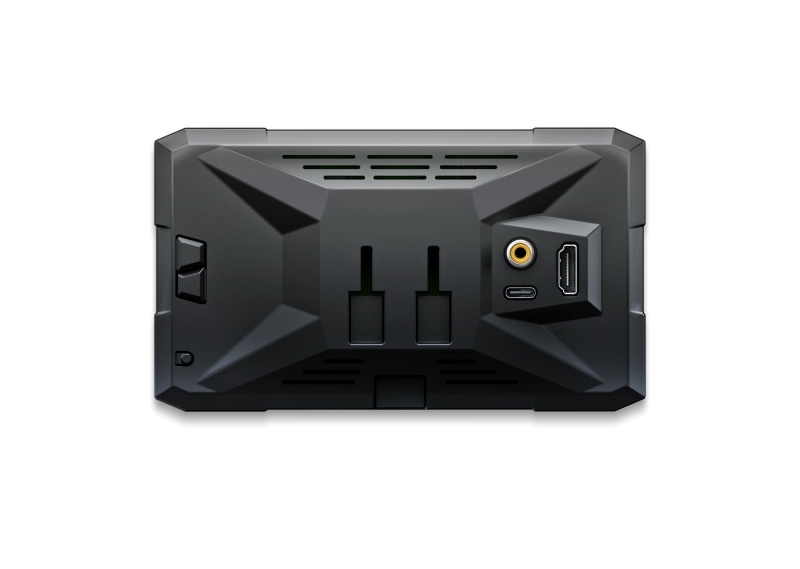

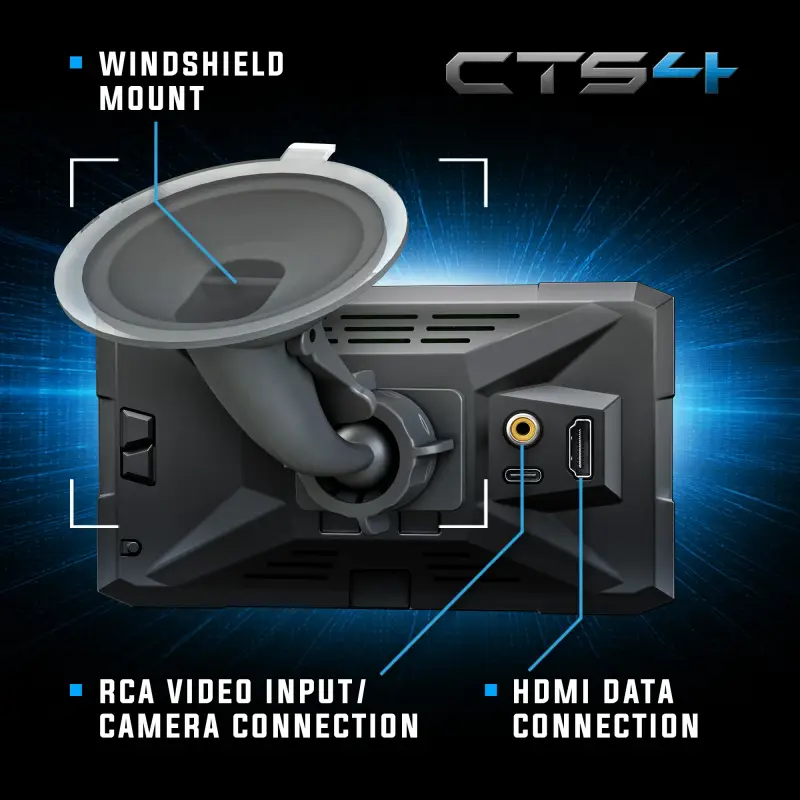

Yes. The CTS4 has an RCA input for a compatible camera and can show it automatically in reverse.
How does it install?
Mount it in the cab, route the cable to the OBD-II port and connect.
*Per Edge, available parameters, features, accessories and functionality vary by vehicle application.
