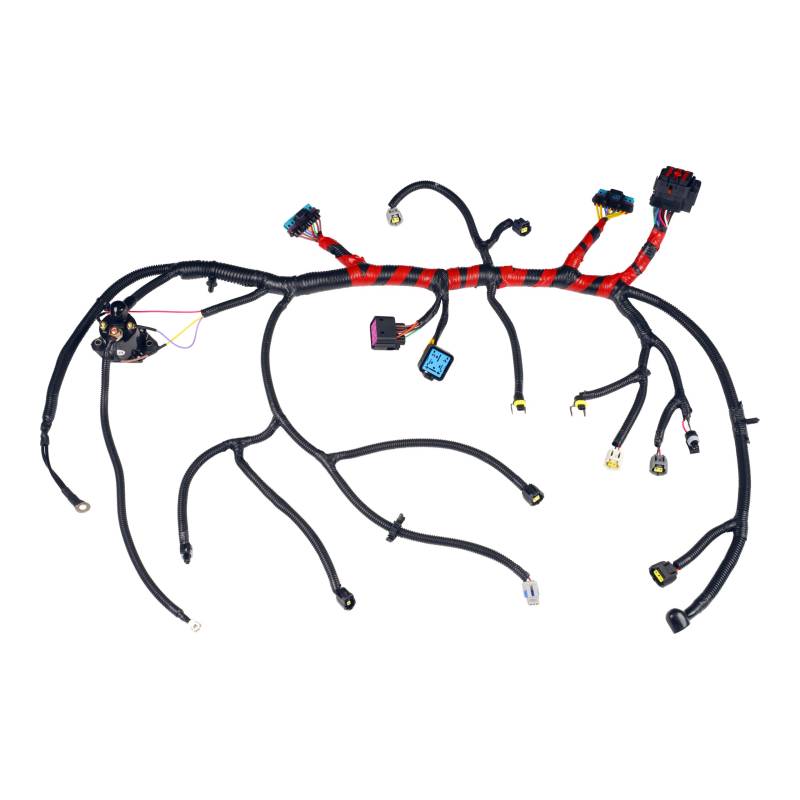

Replacement engine wiring harness for the 2002–2003 Ford Super Duty 7.3L Powerstroke California-emissions application, referenced to Ford part number YC3Z-12B637-EA and cross-reference 1837762C91 ([SWAG Performance][swag]). Match the complete harness number, emissions label, glow plug control module configuration, and connector layout before ordering. Call us at 888-290-3820 or email sales@norcaldieselperformance.com for assistance Do not order this California-application harness as a substitute for the federal-emissions F81Z-12B637-FA listed for relay-equipped trucks ([NorCal federal harness listing][federal]). Need help identifying your harness? Call NorCal Diesel Performance at 888-290-3820, the contact number provided on our [harness page][federal].
Start your engine-wiring repair with the correct harness application, not just a familiar-looking connector. YC3Z-12B637-EA is listed for 2002–2003 Ford Super Duty trucks equipped with the 7.3L Powerstroke diesel and California emissions, with 1837762C91 listed as a corresponding reference number.
The glow plug system is an important identification checkpoint: California-equipped late-1999 and newer 7.3L engines use an electronic glow plug control module, rather than the conventional glow plug relay used by federal-emissions configurations. Verify that system alongside the original harness identification before selecting a replacement.
For a wiring repair, have the damaged circuits diagnosed and document the original harness before removal. Choose this replacement only after confirming the application; do not treat a similar connector housing, engine displacement, or model year as sufficient proof of fitment.
Confirm the application: Match the listed 2002–2003 Ford Super Duty, 7.3L Powerstroke diesel, California-emissions application.
Read the emissions label: Use the underhood emissions label to establish certification type, as directed by the California BAR Smog Check Manual.
Identify the glow plug control module: Look for the California-style electronic GPCM and its two large connectors, rather than assuming any nearby relay is the glow plug relay.
Match the full part number: Verify YC3Z-12B637-EA, including both prefix and suffix; use 1837762C91 as a seller-listed cross-reference, not an independent fitment guarantee.
Compare the actual harness: Photograph the main connector terminal face, module connectors, branch layout, labels, and mounting points before ordering.
Confirm vehicle-specific details: Provide your VIN, transmission type, production information, and any engine or wiring changes for application review.
Application-specific replacement: Listed for the 2002–2003 Super Duty 7.3L California-emissions configuration, helping you narrow the selection to the correct harness family.
Identifiable replacement reference: YC3Z-12B637-EA and the listed 1837762C91 cross-reference provide specific numbers to compare during parts verification.
California glow plug system identification: The electronic GPCM offers a useful visual distinction from the conventional federal glow plug relay system.
Clear separation from other harness listings: NorCal lists YC3Z-12B637-BA for its earlier 2000–2001 California application and F81Z-12B637-FA for its 2002–2003 federal application.
Photograph every readable label on the installed harness, together with any original packaging or service records. Compare the entire identifier against YC3Z-12B637-EA; the exact-part supplier also lists 1837762C91.
Do not approve a match using only “12B637,” “EA,” or the general description “7.3L engine harness.” If a label shows a different number, request a documented cross-reference rather than assuming that similar characters identify the same part.
Use the Vehicle Emission Control Information label to identify the vehicle's emissions configuration; BAR treats the underhood label as the primary source for certification type. Look in the engine compartment, including the underside of the hood, where CARB says this label is most often located.
Photograph the complete label so the certification statement and engine-family information can be reviewed together. Do not use the vehicle's current state of registration as the ordering criterion.
On the California-style 7.3L system, the GPCM has a cast-aluminum housing with heat-sink features and mounts on a bracket using the passenger-side valve-cover studs. Two large engine-harness connectors attach to it, identified in the service guide as one green and one black connector.
The intake-air-heater relay sits forward of the module, toward the radiator, so seeing a relay in that area does not by itself establish a federal glow plug configuration. Photograph the module and the neighboring relay together if you need help distinguishing them.
A published comparison of 2000 and 2002 7.3L connector diagrams reports different terminal assignments despite a similar 42-position connector form factor. Use that as a warning against selecting a complete harness solely because its main connector appears to fit.
For a questionable match, have a qualified technician compare circuit numbers and terminal positions using the wiring information for the actual vehicle. Do not repin a replacement by matching wire colors alone or force a connector that does not seat normally.
If the truck has received a replacement engine, donor harness, controller change, or prior wiring repairs, include that history with the VIN and photographs. Request a review of the installed configuration before ordering rather than relying only on the original vehicle description.
The verified public listing identifies the application at the 2002–2003 Ford Super Duty 7.3L California-emissions level and expressly warns against assuming fitment ([SWAG Performance][swag]). Confirm the original harness reference and your vehicle's complete configuration before purchasing.
2002 Ford Super Duty: Listed with the 7.3L Powerstroke diesel and California emissions; exact vehicle configuration must be confirmed.
2003 Ford Super Duty: Listed with the 7.3L Powerstroke diesel and California emissions; exact vehicle configuration must be confirmed.
F-250, F-350, F-450, and F-550: Request model-specific confirmation rather than treating this list as blanket compatibility.
Ford Excursion: Contact us for exact harness verification before ordering; do not select solely because a glow plug module or another component looks the same.
Transmission and production details: Provide transmission type and build information for review before purchase.
These links are for application comparison, not accessories to purchase with this harness. Verify each product against its own fitment requirements.
It is listed as the engine wiring harness reference for 2002–2003 Ford Super Duty 7.3L Powerstroke diesel applications with California emissions. Verify the complete original harness number and installed configuration before ordering.
Yes, the exact-part supplier lists 1837762C91 alongside YC3Z-12B637-EA. Treat it as a useful cross-reference to verify, not a substitute for checking vehicle fitment.
The published application listings differ: YC3Z-12B637-EA is listed for 2002–2003 California-emissions Super Duty applications, while NorCal's YC3Z-12B637-BA page lists its earlier 2000–2001 application. Do not assume the two are interchangeable because their connectors look similar.
Not necessarily: the intake-air-heater relay is located forward of the GPCM on the California-style system. Identify the actual glow plug controller and read the emissions label before selecting the harness.
Transmission compatibility requires confirmation for your specific vehicle. Provide the VIN, transmission type, and original harness identification before ordering; do not infer compatibility from a different harness page.
Request an exact part-number and configuration check before ordering for an Excursion. Do not rely solely on the model year, engine size, or presence of a glow plug control module.
The external engine harness and the under-valve-cover injector/glow-plug harness are different components, connected through the valve-cover-gasket pass-through connections. Have the damaged component identified before choosing replacement parts.
Confirm the current package contents with NorCal before ordering. Do not assume a module, relay, sensor, or under-valve-cover harness is included because it appears in an application discussion or comparison photo.
Provide the VIN, model year, exact truck model, transmission type, emissions-label photo, original harness label, and clear photos of the main connector and glow plug controller connections. Include any known engine swap or wiring modifications so the actual installed configuration can be reviewed.
