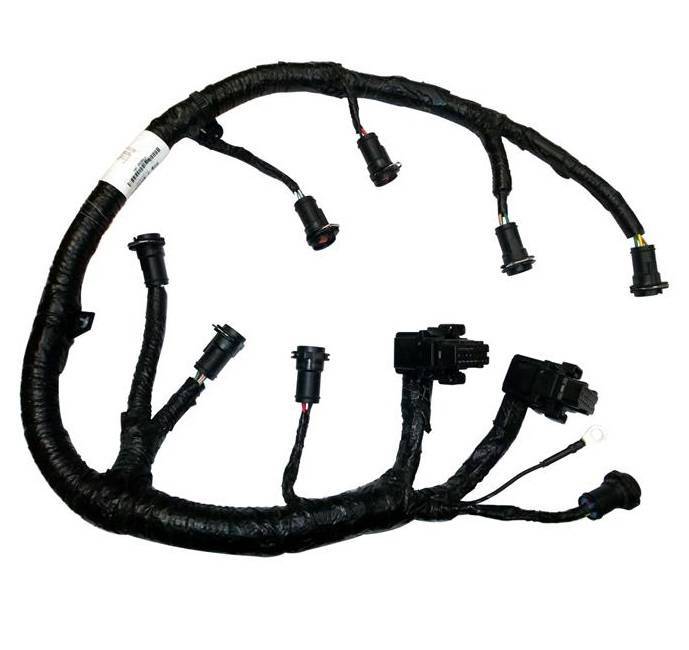

OE‑style main engine wiring harness for 2005–2007 6.0L Powerstroke (5C3Z‑12B637‑BA), with an optional matching FICM harness 5C3Z‑9D930‑A to refresh the critical high‑failure circuits in one shot.
Direct‑fit replacement for 5C3Z‑12B637‑BA main engine harness
Fits 2005–2007 Ford F‑250/F‑350/F‑450/F‑550 6.0L Powerstroke
Restores reliable injector, sensor, and FICM/PCM electrical connections
Eliminates common issues from brittle insulation, chafed wires, and hacked repairs
Optional FICM harness 5C3Z‑9D930‑A available for a more complete wiring refresh
Refresh the electrical backbone of your late‑build 6.0L with this OE‑style replacement main engine wiring harness engineered as a direct substitute for Ford part number 5C3Z‑12B637‑BA. It is designed to fit 2005–2007 Ford F‑250, F‑350, F‑450, and F‑550 Super Duty trucks with the 6.0L Powerstroke diesel and a production date after 11/04/2004, ensuring the correct connector layout, branch routing, and provisions for the later‑style 6.0L configuration.
Years of heat, vibration, and previous repairs can leave the original main harness with cracked insulation, rubbed‑through sections, and corroded terminals that create intermittent no‑start conditions, injector and FICM issues, and electrical gremlins that are hard to pin down. This harness uses factory‑style connectors, correct wire lengths, and proper routing so it plugs directly into the original sensors, injectors, FICM/PCM connections, and engine components without any cutting or splicing. It is ideal for restoring reliability on work trucks, fleet vehicles, or any 6.0L build where electrical integrity is just as important as mechanical health.
Direct replacement for OE main engine harness part number 5C3Z‑12B637‑BA (also referenced as 5C3Z12B637BA).
Fits 2005–2007 Ford F‑250, F‑350, F‑450, and F‑550 Super Duty trucks with 6.0L Powerstroke diesel and production date after 11/04/2004 (verify build date on the door jamb label).
Correct late‑build 6.0L layout with proper branches for injectors, sensors, and FICM/PCM connections.

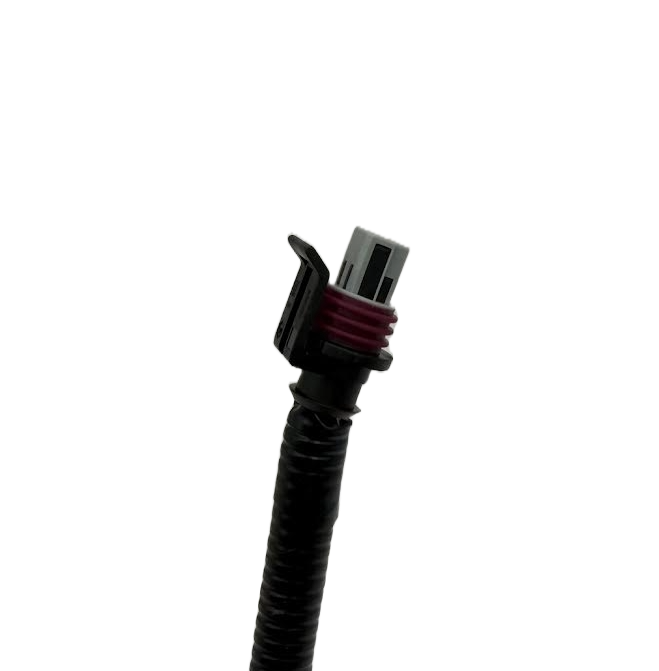

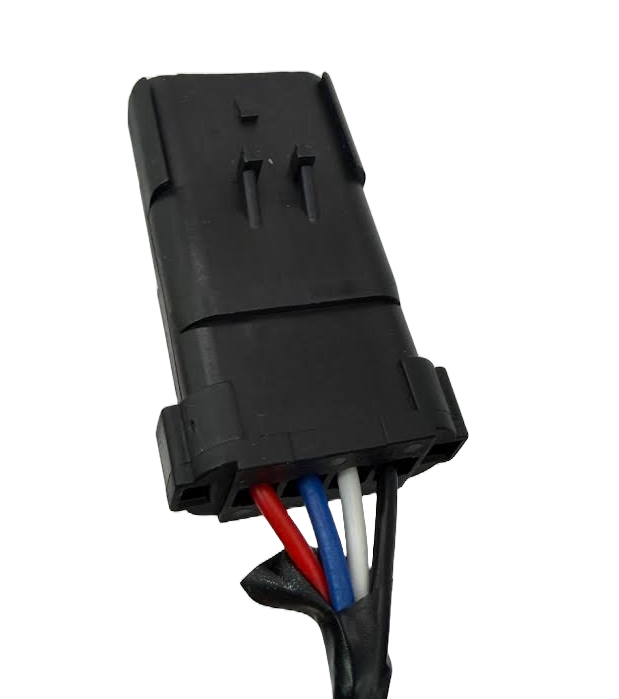

Factory‑style connectors and terminations for sensors, injectors, FICM, glow plug system, and other engine components for a clean, OE‑style installation.
Proper wire gauge, lengths, and loom routing to reduce chafing and abrasion points.
Helps resolve no‑start, injector circuit codes, FICM communication issues, and other wiring‑related electrical faults tied to a failing original harness.
The optional FICM harness 5C3Z‑9D930‑A is designed to complement the 5C3Z‑12B637‑BA main engine harness on 2005–2007 6.0L Powerstroke trucks. It services the wiring that feeds and communicates with the FICM, an area that commonly suffers from heat‑soak, vibration, and previous repairs around the driver‑side valve cover.
Installing a new FICM harness at the same time as the main engine harness helps reduce intermittent FICM power or signal loss, minimizes the chance of future connector‑related issues, and gives you a cleaner, more reliable electrical foundation for tuning, performance upgrades, or heavy‑duty work use.
This harness is sold with a limited 1‑year replacement warranty against defects in materials and workmanship when installed on a correct, stock‑configuration 2005–2007 6.0L Powerstroke application matching 5C3Z‑12B637‑BA fitment and late‑build production date range. The warranty would cover failure due to manufacturing defects under normal use, and exclude damage from improper installation, modifications, accidents, abuse, or use on incorrect model years, build dates, or non‑stock configurations.
Brittle or cracked insulation
Age and heat can dry out the original 6.0L main harness, causing exposed copper and intermittent shorts that trigger injector or sensor codes.
Chafed or rubbed‑through sections
Harness runs along brackets, intake, and engine hardware; vibration can rub through the loom and wires, leading to hard‑to‑trace no‑start, misfire, or rough‑run issues.
Corroded or loose connectors
Moisture and engine‑bay contaminants can corrode terminals or loosen connector locks, causing intermittent injector firing, FICM communication problems, or random stalling.
Previous “repair” splices
Old butt‑connectors or taped‑up splices from earlier fixes can turn into new failure points; a new main harness eliminates these weak links and restores proper circuit integrity.
Verify build date and part number
Confirm the truck is a 2005–2007 Super Duty with a production date after 11/04/2004 and that it calls for a 5C3Z‑12B637‑BA style main engine harness before starting the job.
Disconnect batteries
Always disconnect both batteries to protect the PCM, FICM, and other electronics before unplugging the old harness.
Label as you go
Even though the replacement is designed as plug‑and‑play, labeling or taking photos of the old harness routing makes reassembly faster and cleaner.
Inspect connectors closely
Check mating connectors (FICM, injectors, sensors, glow plug system) for bent pins, corrosion, or broken locks and address any issues before plugging in the new harness.
Secure with all clips and ties
Reuse or replace loom clips and zip ties so the harness is supported and not rubbing on sharp edges, brackets, or hot components.
Q: What trucks does this harness fit?
A: It is intended for 2005–2007 Ford F‑250, F‑350, F‑450, and F‑550 Super Duty trucks equipped with the 6.0L Powerstroke diesel and with a production date after 11/04/2004, matching the 5C3Z‑12B637‑BA main engine harness configuration.
Q: How do I confirm my build date?
A: Check the manufacture date on the driver‑side door‑jamb sticker; this harness is correct only for late‑build 6.0L trucks produced after 11/04/2004.
Q: Does this change performance or require tuning?
A: No. It is an OE‑style replacement meant to restore proper electrical function, not alter power levels or calibration, so no tuning changes are needed.
Q: What symptoms suggest my main engine harness is bad?
A: Common signs include intermittent no‑start, random stalling, injector circuit codes, FICM communication errors, cam and crank signal errors, melted or chafed sections of loom, or issues that change when you manipulate parts of the harness.
Q: Do I need to cut or splice any wires?
A: No. The harness is pre‑terminated with factory‑style connectors and correct routing so it installs as a direct plug‑in replacement for the original 5C3Z‑12B637‑BA main engine harness.
Q: Can I use this on an earlier 6.0L that does not list 5C3Z‑12B637‑BA?
A: It is not recommended; 6.0L trucks with different years or build‑date ranges can have different harness and connector layouts. Always match the harness to the correct part number and build‑date range for your VIN.
