SPOOLOGIC Stage 1 Performance Turbocharger for 2004.5-2007 5.9L Dodge Cummins 5.9L 24v – Black

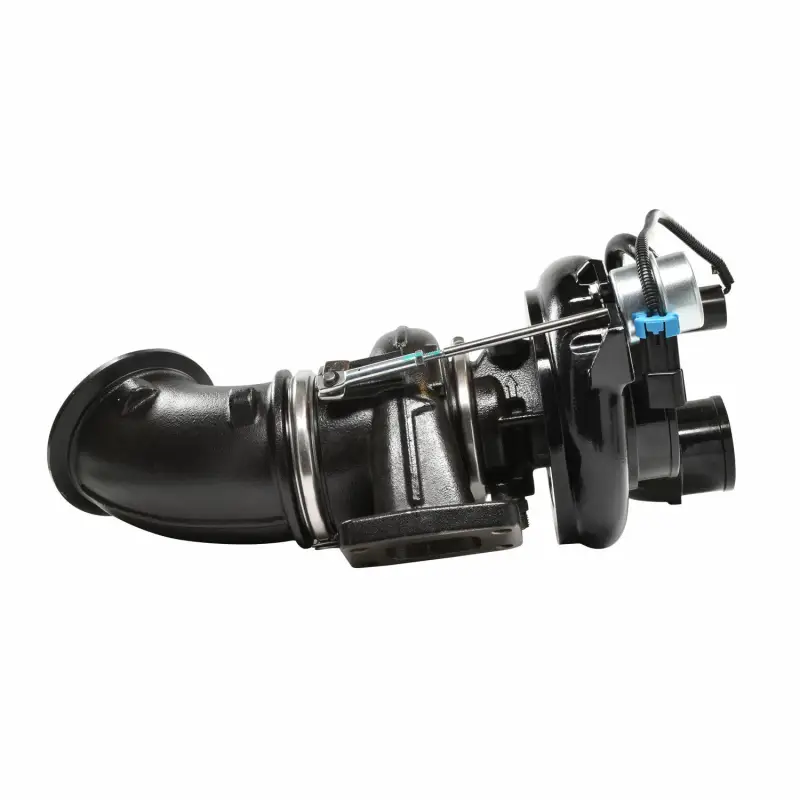

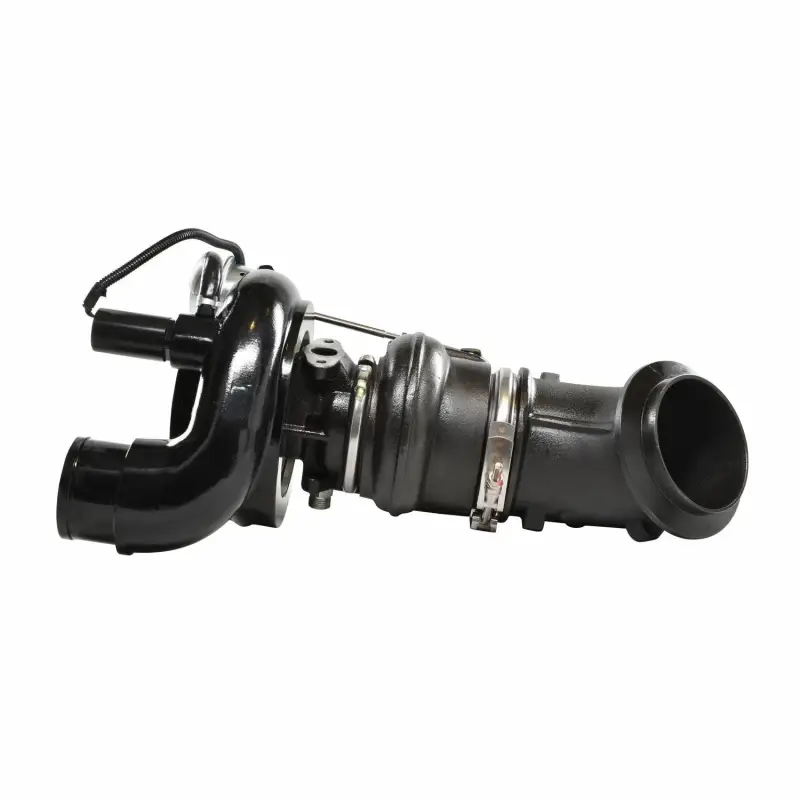

SPOOLOGIC HE351CW Stage 1 Turbocharger

Fitment
2004.5-2007 Dodge Ram 5.9L Cummins 24v

The components found in SPOOLOGIC turbos are sourced from the world’s leading manufacturers. Built to exceed OEM quality standards. We provide exactly the parts you need for your 5.9L Cummins HE351CW turbo. No more, no less. This turbo was designed to completely replace your worn out stock HE351CW. From start to finish.

Contents

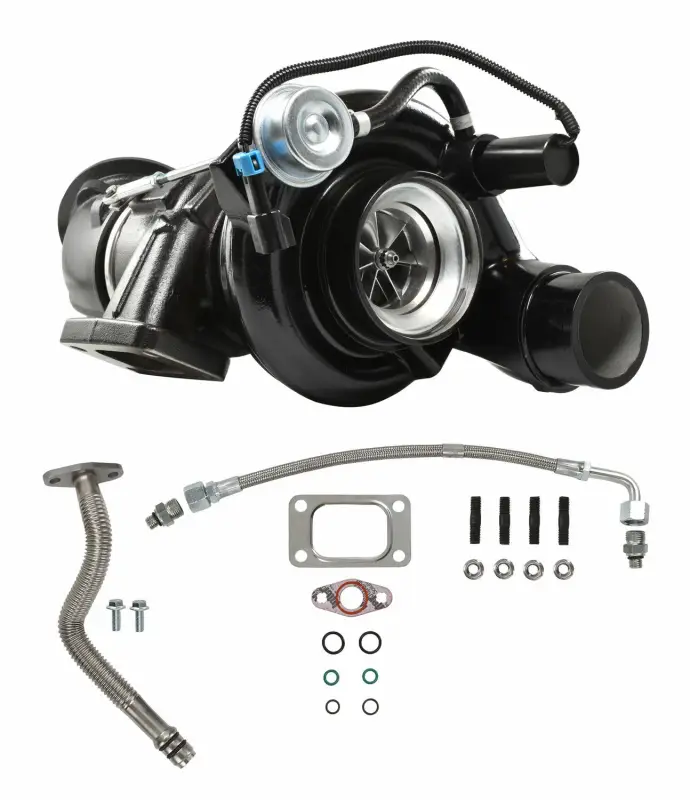

5.9L HE351CW Turbocharger, Turbo Feed And Drain Lines With Fittings, Install Kit With Gaskets, O-Rings, Hardware

Power Gains

Tuned Engines: Up To +40 HP / +60 ft/lbs Torque Stock Engines: Around +20 HP / +30 ft/lbs Torque

Benefits

Increased Turbo Boost: Up to 30+ PSI Boost With Wastegate Modifications

Color

Compressor Housing: Black Powder Coating

Center Section Exhaust Housing: Black Ceramic Coating

Coating Benefits

Our testing has proven ceramic coating the turbo offers several performance benefits; keeps the turbo from radiating heat reducing under-the-hood temperatures by up to 70°F lowering intake air temperatures, reduces turbo lag and improves spool-up times by keeping the turbine inlet gases hot.

Features

Improved longevity in high boost applications, 5-7 PSI boost increase, eliminates compressor surge, improved performance at high boost levels, severe-duty journal bearings and thrust collar

Brass 360 Thrust Bearing

Brass dissipates heat faster and provides a longer life span vs steel. Improved lubrication with 6 oil passages VS OEM 270 style thrust bearings with 5 oil passages.

Step Gap Oil Seal

Tighter tolerances for superior sealing minimizing oil leakage from the bearing housing vs standard OEM turbine shaft oil seals
