Double your range!

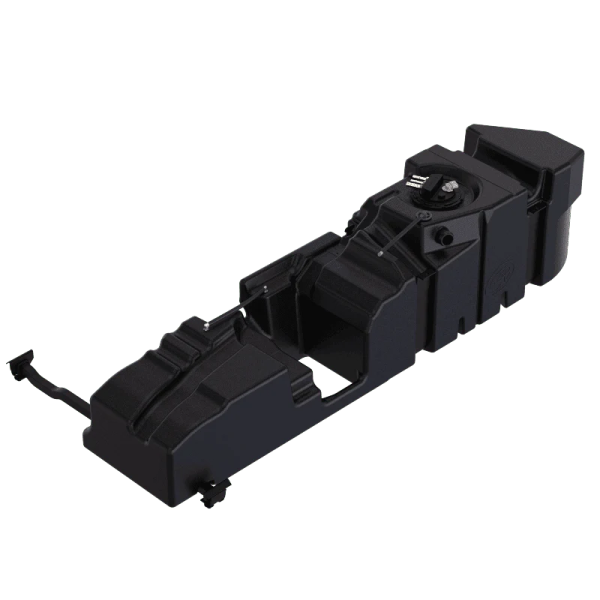

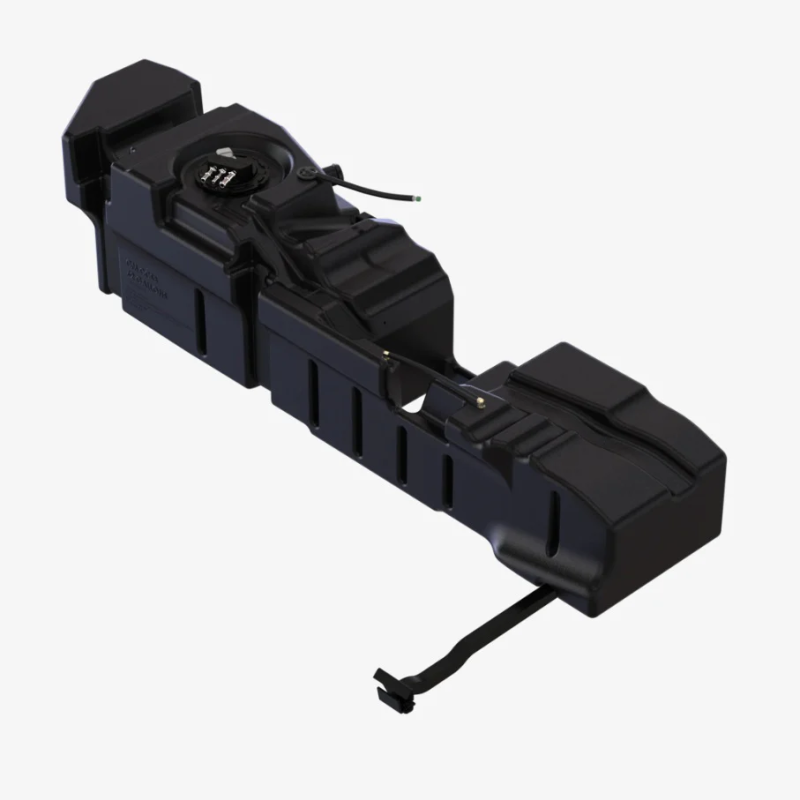

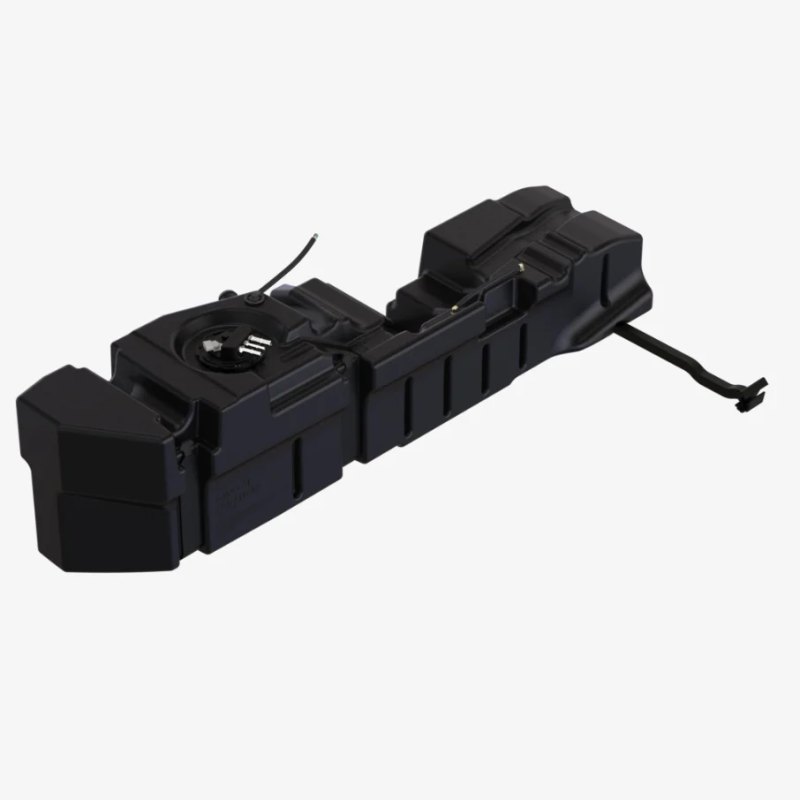

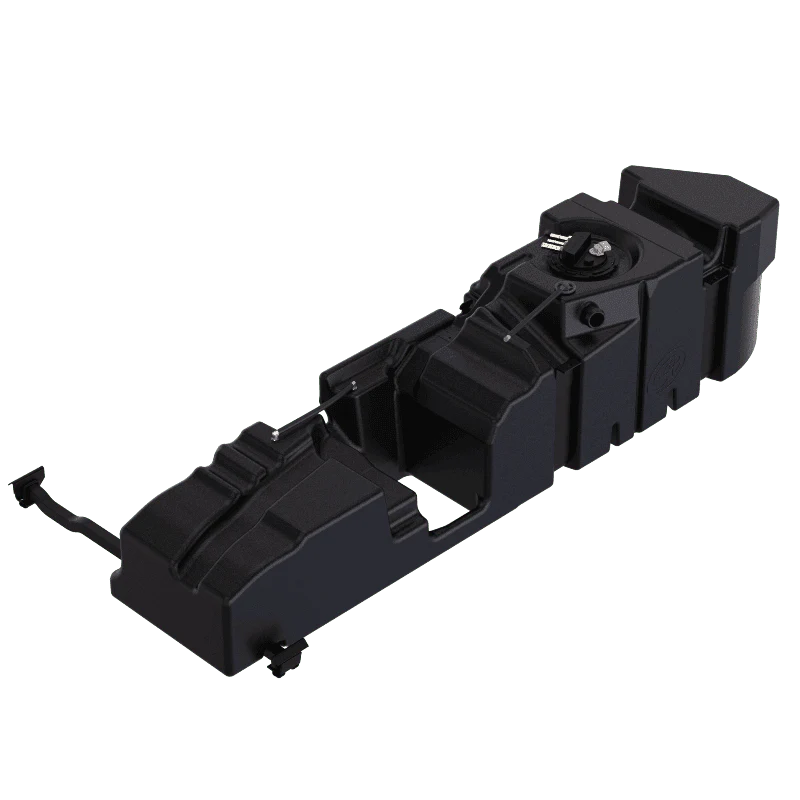

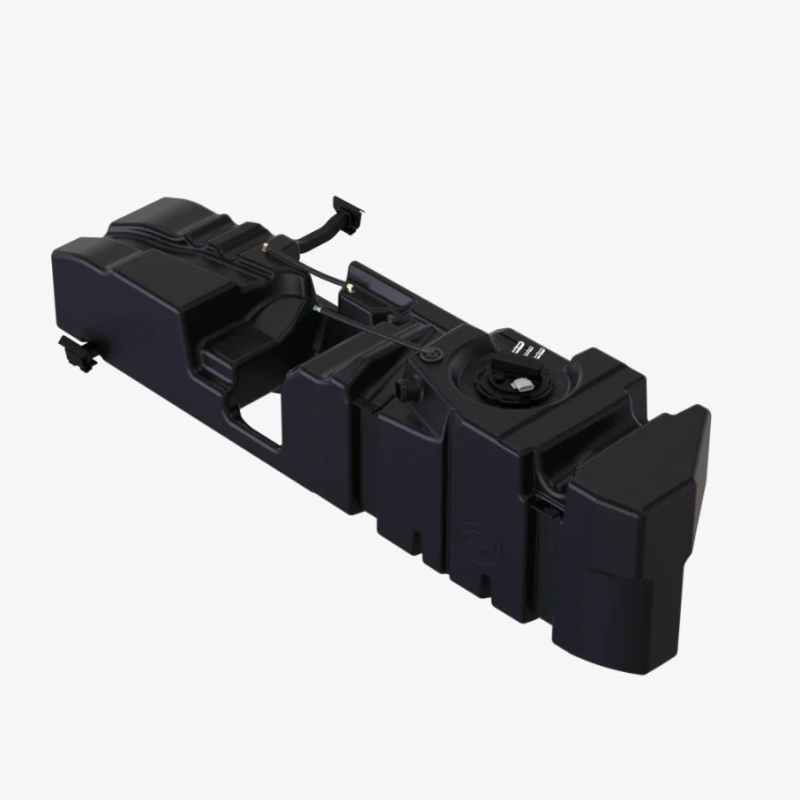

S&B's 62-gallon fuel tank directly replaces the OEM 26-gallon tank without any cutting, drilling, or special modifications. This makes for a trouble-free, faster installation process. S&B's replacement fuel tank holds 10 more gallons than competitor tanks allowing you to save time, go further, and get more out of your truck!
AFTERMARKET LIFT PUMP
This tank features a built in sump which can be used for aftermarket lift pump installation, if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps. S&B sump fittings are required to be used to prevent leaking.
INCLUDED S&B SENDING UNIT.
Includes a premium OEM style sending unit. ($300 value)
SPECS
TANK TYPE - MIDSHIP
S&B CAPACITY (APPROXIMATE) - 62 GALLONS
WEIGHT (DRY) - 62LBS
GROUND CLEARANCE COMPARE TO OE TANK - 5" LOWER
SUMP - YES
DRAIN - YES
SENDING UNIT - S&B
STRAPS INCLUDED - YES
COMPATIBLE WITH OE SKID PLATE - NO
COMPATIBLE WITH GOOSENECK AND 5TH WHEEL - YES
TRANSFER PUMP READY - YES
EMBEDDED FITTING THREAD SIZE - 1/2" NPT
DIMENSIONS - 79.25" X 17.74" X 20.82"
