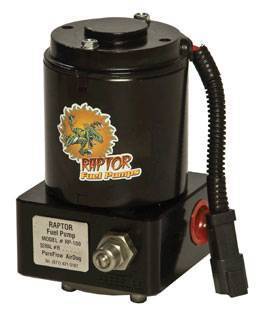

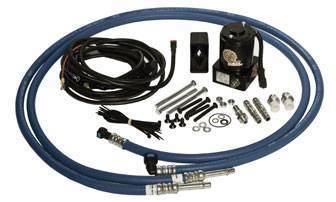

Build your 1994-1998 Dodge/Ram 5.9L Cummins fuel-supply setup around the AirDog Raptor 4G RP-4G-100. This 100 GPH Raptor pump kit provides an application-specific fuel-delivery option without adding an AirDog dual-filter assembly.
Key details
- Manufacturer part number: R4SBD048
- Series: AirDog Raptor 4G
- Model: RP-4G-100
- Nominal flow rating: 100 GPH
- Fuel type: Diesel
- Application: 1994-1998 Dodge/Ram 5.9L Cummins
- Engine family: Cummins
- Valvetrain: 12V
- Sold as: Kit
- Country of origin: US
Fitment and ordering notes
- Application range: 1994-1998 Dodge/Ram 5.9L Cummins. Confirm the engine and existing fuel-system configuration before ordering.
- For 12-valve P-pump applications; do not substitute for the 1998.5-up 24-valve application.
Installation overview
- Mounts to the frame rail using the supplied sandwich plate mounting system.
- The suction line connects to the factory suction fitting on top of the fuel module.
- The pressure side connects directly into the side of the fuel filter housing on the engine block.
- Internal regulation eliminates a separate pump-return line; retain the engine's original return circuit.
- Pump kit, not an AirDog dual-filter/air-separation assembly. Do not remove required fuel filtration.
Tech tips
- Choose flow capacity around the complete fuel system and intended use; a GPH rating is not a guaranteed horsepower or fuel-economy gain.
- Use the exact kit's installation instructions for hose routing, electrical connections, priming, leak checks and operating-pressure verification.
- Confirm tank, pickup and filtration modifications before scheduling installation. The overview above does not replace the installation manual.
Installation resources and warranty
Use the exact part number to locate the applicable instructions in the AirDog resource library. Confirm warranty terms for this model and complete the manufacturer registration as required.
